ODM SL- flow control push on throttle Manufacturer, Companies

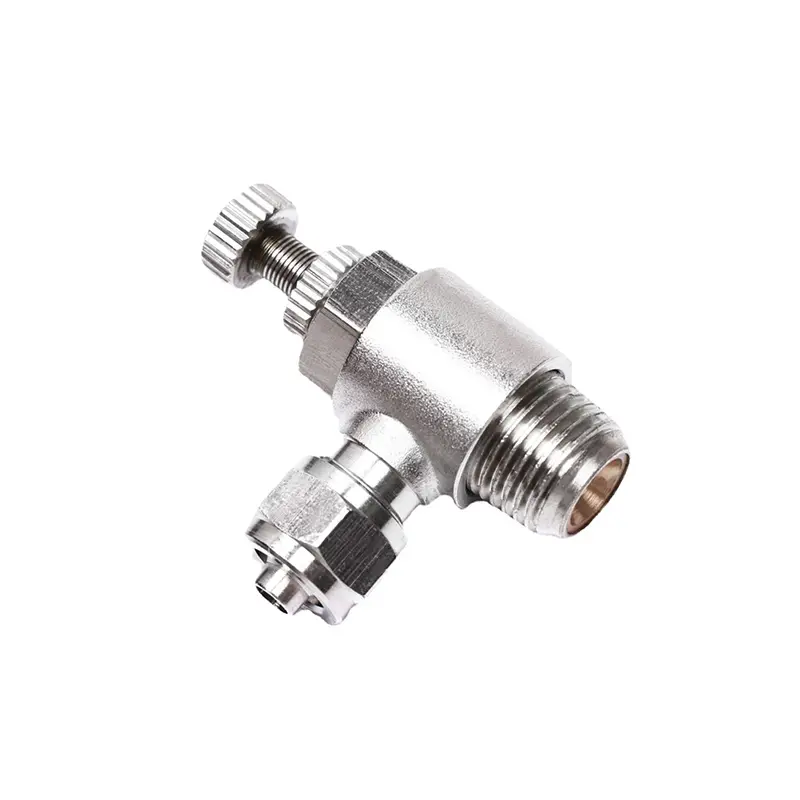

Our flow control valve is a carefully constructed fluid control component.The robust nickel-plated copper used to make this valve is resistant to corrosion and long-lasting, even in high-temperature and high-pressure settings. It is the ideal choice for systems requiring precise flow control and quick installation due to its one-way throttling mechanism and quick-connect construction.

Send Inquiry

Product Description

Product Introduction

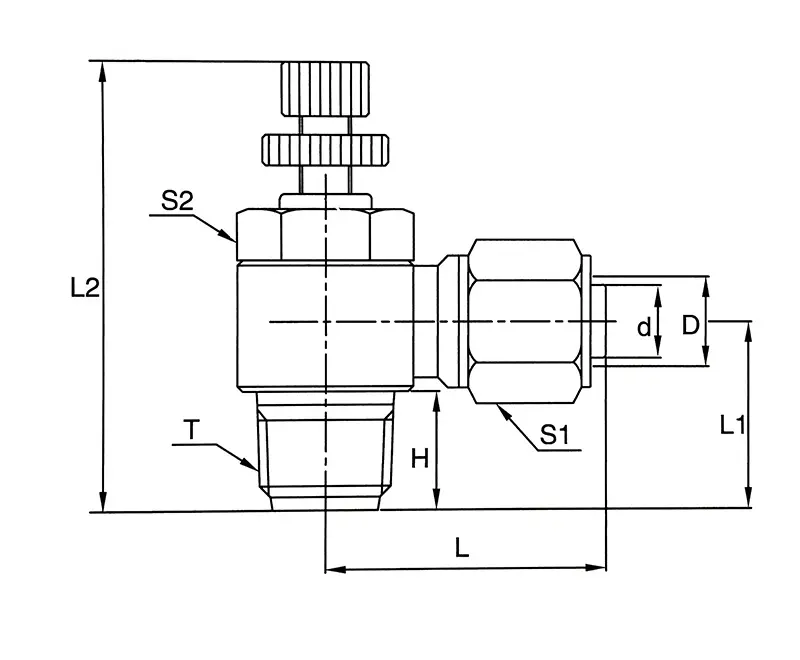

SL-flow control push in throttle	Model	L2	L	S1	S2	H	T	D
Specifications Chart	NKSL4-M5	29	18	8	8	4	M5	4
	NKSL4-M6	29	18	8	8	4	M6	4
	NKSL6-M5	38	23	12	12	4	M5	6
	NKSL6-01	40	23	12	12	8	ZG1/8	6
	NKSL6-02	42	26	12	14	10	ZG1/4	6
	NKSL6-03	51	28	12	19	11	ZG3/8	6
	NKSL6-04	56	29	12	22	14	ZG1/2	6
	NKSL8-01	40	23	13	12	8	ZG1/8	8
	NKSL8-02	42	26	13	14	10	ZG1/4	8
	NKSL8-03	51	30	13	19	11	ZG3/8	8
	NKSL8-04	56	31	13	22	14	ZG1/2	8
	NKSL10-01	40	24	15	12	8	ZG1/8	10
	NKSL10-02	42	27	15	14	10	ZG1/4	10
	NKSL10-03	51	31	15	19	11	ZG3/8	10
	NKSL10-04	56	32	15	22	14	ZG1/2	10
	NKSL12-01	40	25	17	12	8	ZG1/8	12
	NKSL12-02	42	28	17	14	10	ZG1/4	12
	NKSL12-03	51	31	17	19	11	ZG3/8	12
	NKSL12-04	56	33	17	22	14	ZG1/2	12

The size is measured manually, there may be slight deviations, only for reference.

Main Features

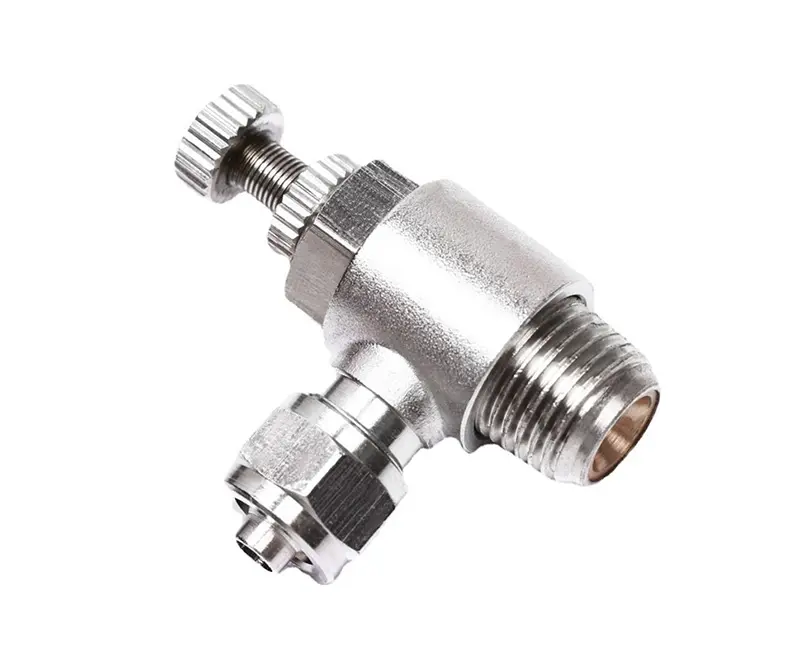

Product Structure

1 Valve Body: Crafted with precision from nickel-plated copper for exceptional structural integrity and resistance to corrosion.
2 Needle holder: Maintains constant pressure and prevents backflow by guaranteeing one-way flow control.
3 Quick-Connect Fittings: Make safe, tool-free connections possible for quick installation and upkeep.
4 Throttle Adjustment Mechanism: Enables flow rates to be adjusted to meet particular system needs.
5 Gasket and O-ring: High quality NBR material O-ring.

Key Features

1 Durable Nickel-Plated Copper: Perfect for severe situations, it is resistant to oxidation, rust, and chemical damage.
2 One-Way Flow Control: Precisely controls the speed of fluid or air while preventing reverse flow.
3 Quick-Connect Design: Push-to-connect capability makes installation easier and decreases downtime.
4 High Compatibility: Integrates easily with low-viscosity fluid systems, hydraulic systems, and pneumatic systems.
5 Compact & Lightweight: Saves space without compromising performance.

Advantages

1 Enhanced System Efficiency: Accurate throttling minimizes waste and maximizes energy use.
2 Extended Service Life: Copper that has been nickel-plated guarantees resilience in environments that are corrosive or high in moisture.
3 Low Maintenance: Sturdy construction reduces wear & tear and operating expenses.
4 Versatile Performance: Adaptable to industrial pressure levels for both liquid and gaseous media.

Applications

1 Pneumatic Systems: Regulate the flow of air in machinery, cylinders, and actuators.
2 Hydraulic Systems: Control fluid flow in power units, pumps, and motors.
3 Automotive Manufacturing: Enhances air suspension, fuel lines, and brake systems.
4 Industrial Automation: Guarantees precision in CNC machinery, assembly lines, and robotic arms.
5 Medical Devices: Protects ventilator and diagnostic machine fluid control.
6 HVAC Systems: Control the flow of coolant or refrigerant in heating and cooling devices.

Installation Video

Frequently Asked Questions

Q1 What material is the SL-flow control push-in throttle valve made of?

The valve body is crafted from precision nickel-plated copper, which provides excellent resistance to corrosion, rust, and chemical damage. The O-rings and gaskets are made from high-quality NBR (nitrile butadiene rubber) for secure sealing.

Q2 How does the one-way flow control mechanism function?

It features a needle holder that keeps constant pressure and guarantees one-way flow control, allowing you to precisely control the speed of fluid or air in one direction while preventing backflow.

Q3 Does the quick-connect design require any special installation tools?

No, the push-to-connect mechanism is completely tool-free. It enables quick installation, safe connections, and effortless maintenance, which helps decrease system downtime.

Q4 What media and systems are compatible with this throttle valve?

This valve is compatible with gaseous and liquid media at industrial pressure levels. It easily integrates with pneumatic systems, hydraulic systems, low-viscosity fluid setups, automotive lines, industrial automation, medical equipment, and HVAC systems.

Q5 Are the dimensions shown in the specifications table exact?

The measurements in the specification table are taken manually. Although they are highly accurate, slight deviations might occur, and they are provided for reference purposes only.
