China PM-straight bulkhead push in fittings Factories, Company

PM push-in bulkhead straight fittings are a popular and practical fluid connection tool in the chemical industry, water treatment, automation, and pneumatic pipeline systems, among other domains. It is intended to increase the pipeline system's dependability and safety while streamlining the installation procedure.

Send Inquiry

Product Description

Product Introduction

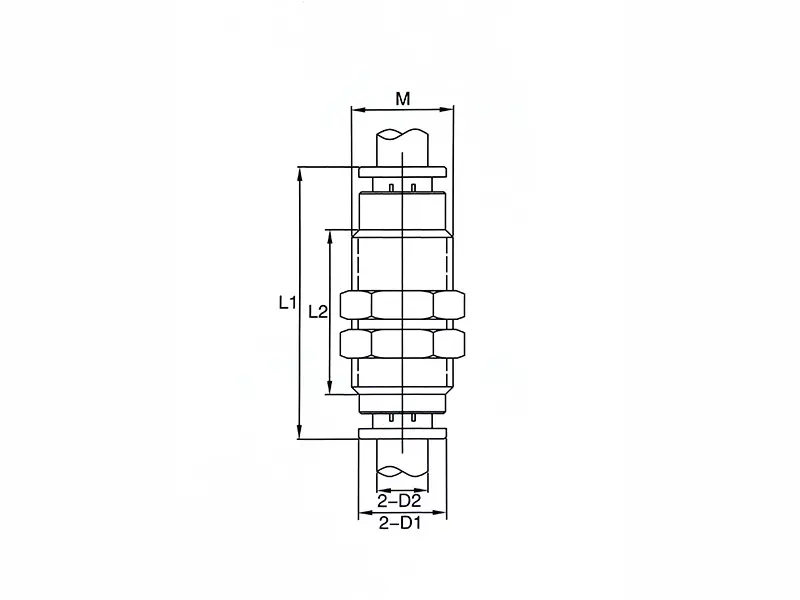

PM-straight bulkhead push in fittings dimensions

PM-straight bulkhead push in fittings	Model	L1	L2	M	D1	D2
NPM4	NPM4	29	19	M12*1	9	4
NPM6	NPM6	41	28	M14*1	12	6
NPM8	NPM8	42	27.5	M16*1	14	8
NPM10	NPM10	43	30	M18*1	16	10
NPM12	NPM12	45	32	M20*1	18	12

The size is measured manually, there may be slight deviations, only for reference.

Main Features

A part made to quickly connect and disengage pneumatic pipelines is the straight quick-connect pneumatic coupling, which is nickel-plated and made of brass. Its key characteristics, which greatly improve labor productivity and safety, include the use of brass nickel-plated material and a quick-connect feature.

1. Quick installation

Uses a one-button plug-in design that saves a significant amount of time during installation and maintenance by enabling rapid connections and disconnections without the need for equipment.

2. High sealing

Furnished with premium sealing rings to guarantee that the connector can continue to work well in sealing situations involving high pressure and high temperatures in order to stop leaks.

3. Durable material

It is appropriate for a range of settings and is made of H59-1 brass, which resists wear and corrosion. It is appropriate for severe situations since nickel plating further improves corrosion resistance. Enhances wear resistance, increases surface hardness, and prolongs the coupling's life. Aesthetic appeal, which raises the general caliber of the goods.

4. Various specifications

Comprehensive standards to satisfy the needs of assembling pipes and threads of various sizes. This adaptability improves overall system compatibility by guaranteeing that the appropriate coupling can be chosen for each given application.

5. Wide use media

Suitable for the transmission of various media such as water, oil, gas, etc.

6. Applications

Numerous industries, including automation equipment, pneumatic tools, medical devices, the food and beverage sector, electronics and electrical appliances, and more, employ the straight quick-connect pneumatic connection that is nickel-plated and made of brass.

Quick-connect functionality, dependable sealing, and robust corrosion resistance are just a few of the many benefits that come with the brass nickel-plated straight quick-connect pneumatic fitting. It is a great option for many applications in a variety of sectors due to its sturdy design and simplicity of installation. You may increase your pneumatic system's lifetime, safety, and efficiency by choosing the right coupler for your particular requirements.

Installation Video

Frequently Asked Questions (FAQ)

Q1: What materials are used to construct these straight bulkhead push-in fittings?

A1: These fittings are constructed using premium H59-1 brass and coated with nickel plating, which enhances their surface hardness, wear resistance, and long-term corrosion resistance in harsh environments.

Q2: How does the quick installation mechanism function?

A2: The fittings feature a tool-free, one-button plug-in design. This allows operators to quickly connect and disconnect pneumatic pipelines, greatly reducing installation and maintenance time.

Q3: What types of media can be transmitted through these couplings?

A3: The brass nickel-plated straight quick-connect pneumatic fittings are highly versatile and suitable for the transmission of various media, including water, oil, and gas.

Q4: Are these fittings safe for high-pressure and high-temperature systems?

A4: Yes. They are equipped with high-quality sealing rings that maintain strong integrity and prevent leaks, even in demanding high-pressure and high-temperature applications.

Q5: In which industries are these bulkhead fittings commonly utilized?

A5: They are widely applied across industrial automation, pneumatic tools, medical instruments, food and beverage processing, electrical appliances, and electronics manufacturing.

Q6: What models and sizes are available for selection?

A6: We offer a comprehensive range of specifications, including NPM4, NPM6, NPM8, NPM10, and NPM12, to ensure compatibility with different tubing diameters and thread requirements.
