PC male push in straight fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

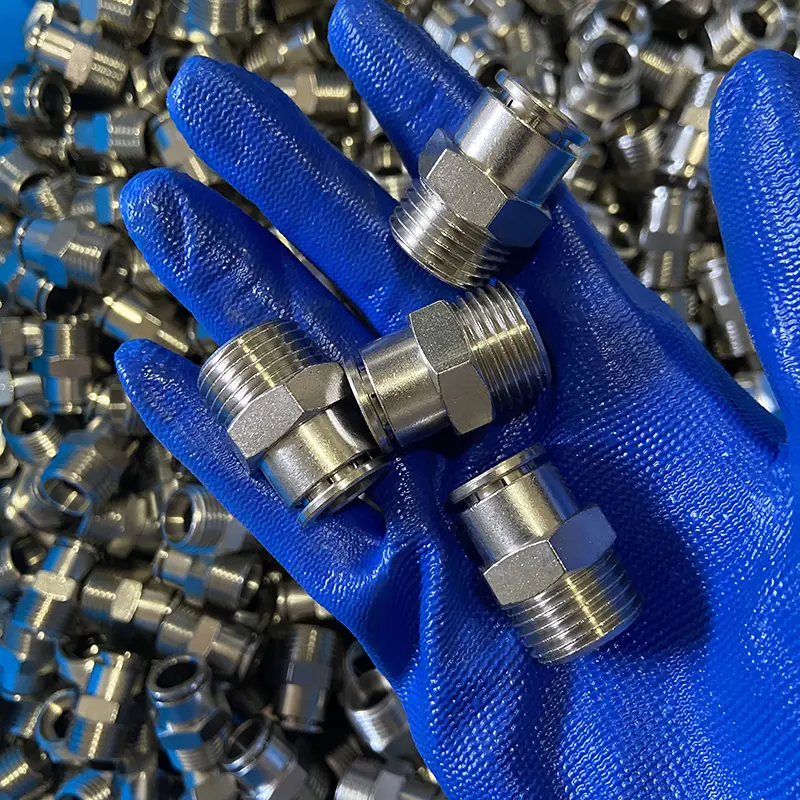

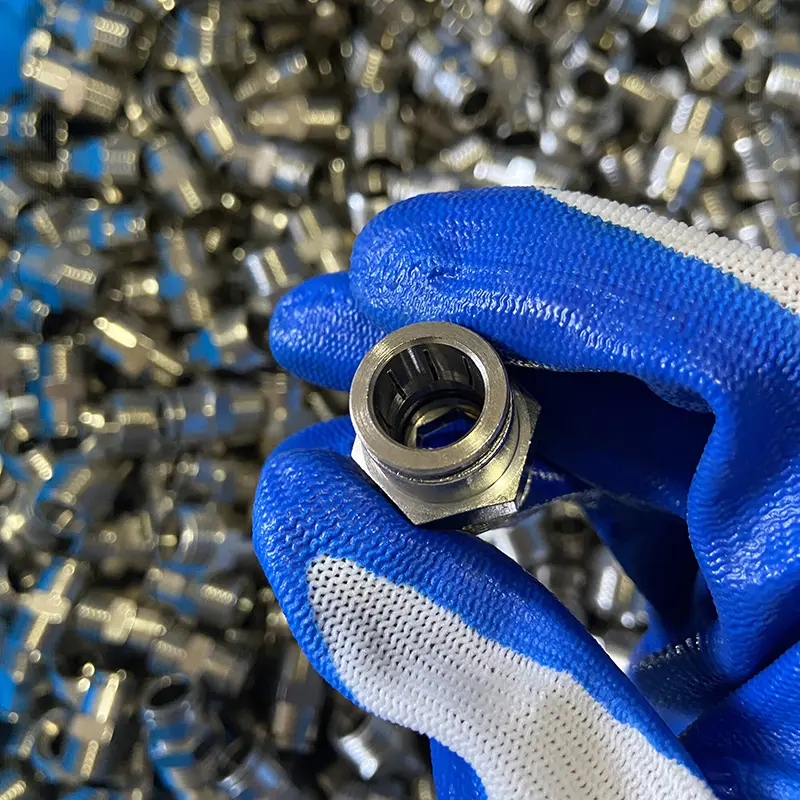

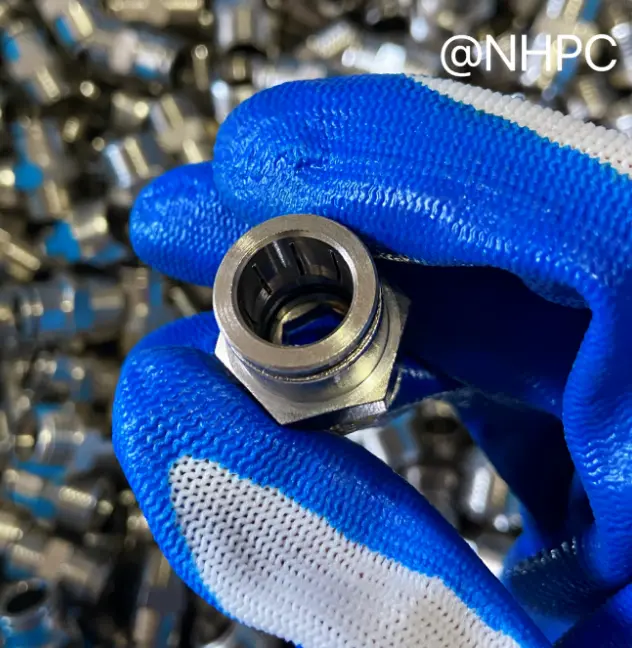

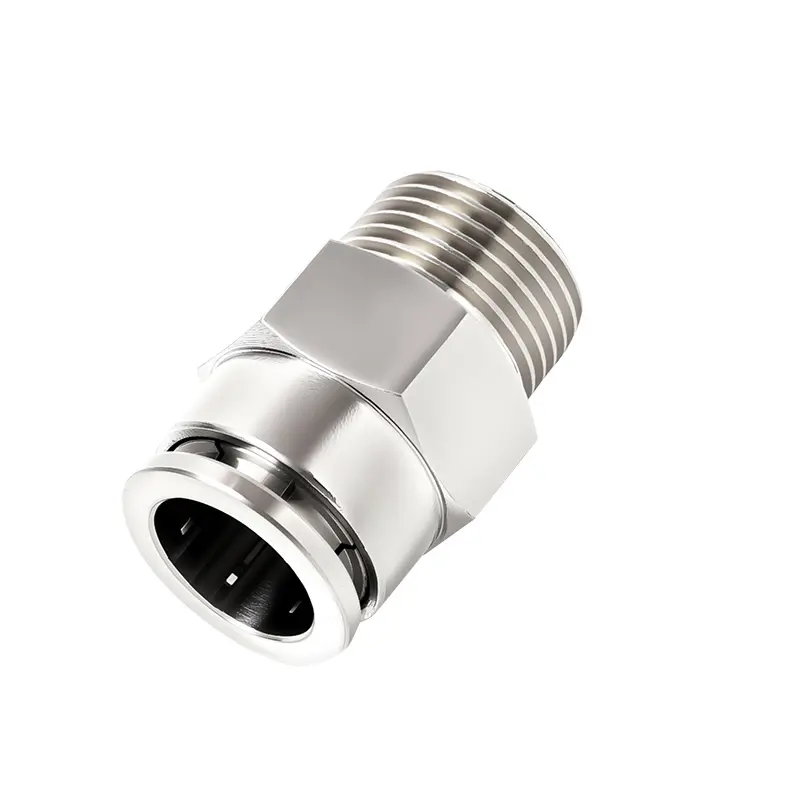

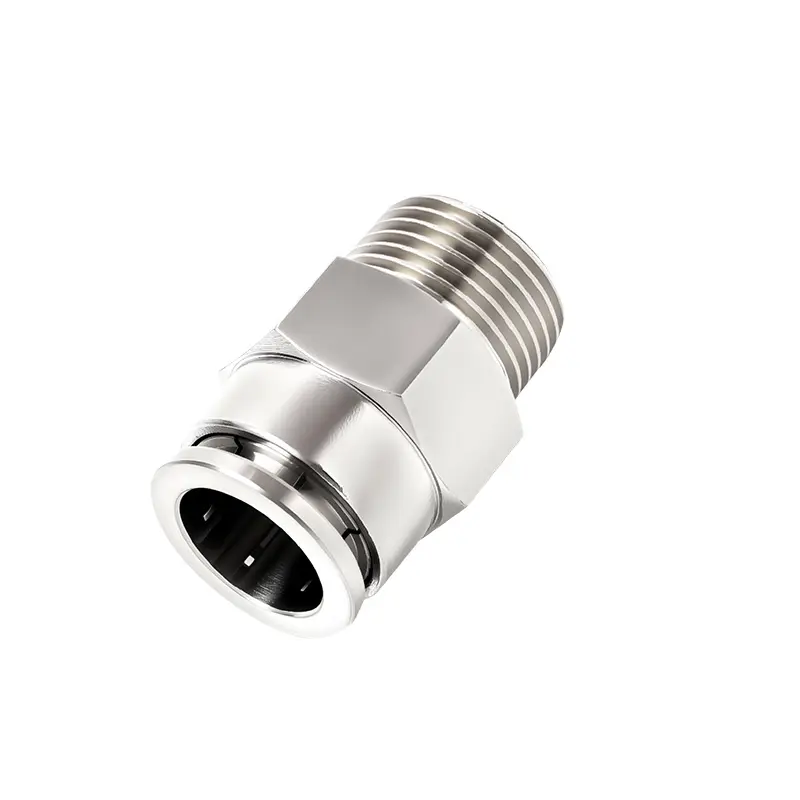

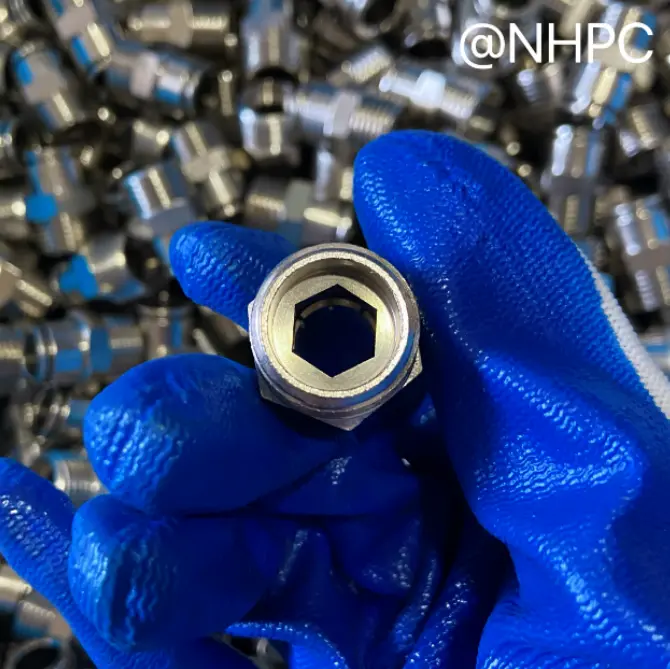

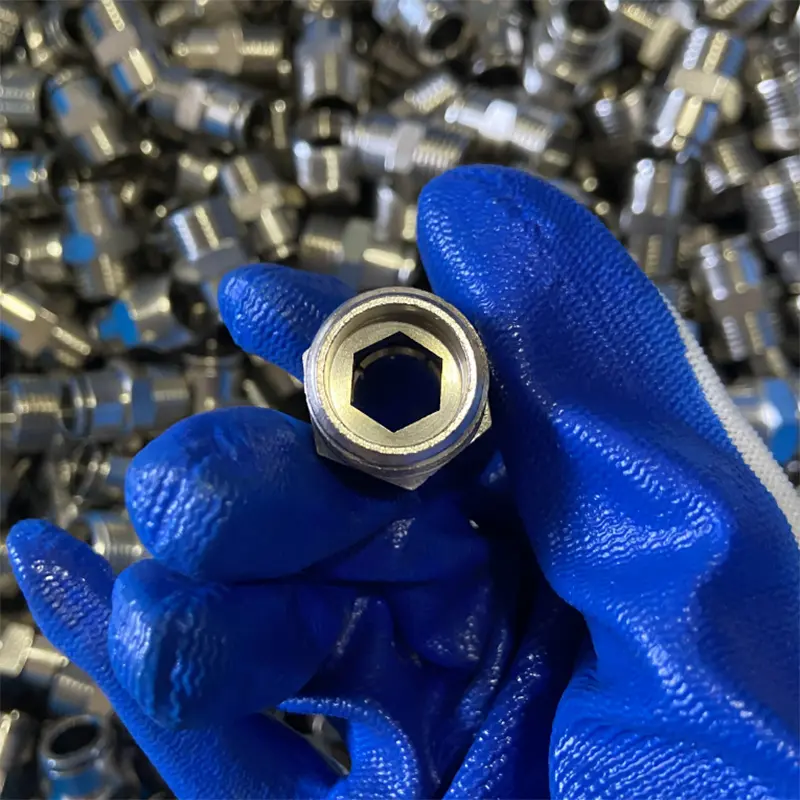

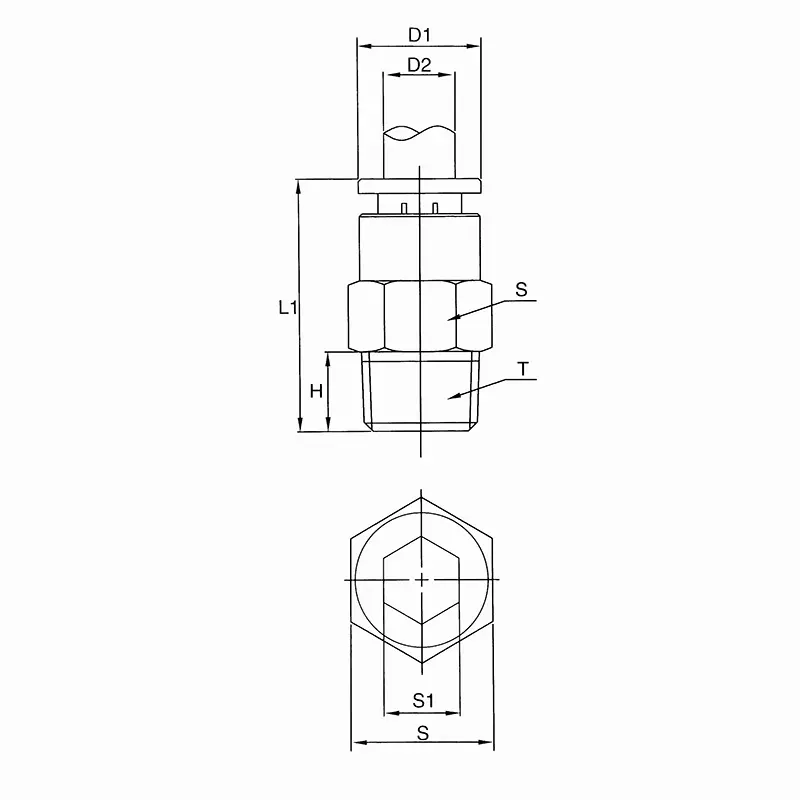

PC-straight male push in fittings Dimensions & Models
Model
L1
S1
H
S
T
D1
D2
NPC4-M5
22
2
5.5
10
M5*1
9
4
NPC4-M6
22
2
5.5
10
M6*1
9
4
NPC4-M8*1
22
2
7
10
M8*1
9
4
NPC4-10*1
23
2
7
12
M10*1
9
4
NPC4-01
23
2
7
10
R1/8
9
4
NPC4-02
24
2
9
14
R1/4
9
4
NPC6-01
25
5
7
12
R1/8
12
6
NPC6-02
25
5
9
14
R1/4
12
6
NPC6-03
22
5
10
17
R3/8
12
6
NPC6-04
22
5
11
21
R1/2
12
6
NPC8-01
28
5
7
14
R1/8
14
8
NPC8-02
28
6
9
14
R1/4
14
8
NPC8-03
22
6
10
17
R3/8
14
8
NPC8-04
22
6
11
21
R1/2
14
8
NPC10-01
30
5
7
17
R1/8
16
10
NPC10-02
31
6
9
16
R1/4
16
10
NPC10-03
31
8
10
17
R3/8
16
10
NPC10-04
25
8
11
21
R1/2
16
10
NPC12-01
30
5
7
19
R1/8
16
12
NPC12-02
32
6
9
19
R1/4
18
12
NPC12-03
31
9
10
19
R3/8
18
12
NPC12-04
25
9
11
21
R1/2
18
12
NPC14-02
30
6
9
22
R1/4
21
14
NPC14-03
31
9
10
22
R3/8
21
14
NPC14-04
33
12
11
22
R1/2
21
14
NPC14-06
38
12
13
27
R3/4
21
14
NPC16-04
35
12
11
24
R1/2
23
16
NPC16-06
38
14
13
27
R3/4
23
16
* Note: The size is measured manually, there may be slight deviations, only for reference.
Main Features
The brass nickel-plated straight quick-connect pneumatic coupling is a component designed for rapid connection and disconnection of pneumatic pipelines. Its core features include the use of brass nickel-plated material and a quick-connect function, significantly enhancing work efficiency and safety.
1. Quick Installation
Features a one-touch plug-in design, enabling quick connection and disconnection without any tools. This significantly reduces the time required for installation and maintenance.
2. High Sealing
Fitted with high-quality sealing rings to ensure reliable sealing performance even in high-pressure and high-temperature conditions, effectively preventing leaks.
3. Durable Material
Constructed from H59-1 brass, offering corrosion and wear resistance suitable for various environments. The nickel plating further enhances corrosion resistance, making it ideal for harsh conditions, while also increasing surface hardness to extend the coupling's lifespan and improving its aesthetic quality.
4. Various Specifications
Available in comprehensive specifications to meet the assembly needs of different thread and pipe sizes. This versatility ensures the right coupling can be selected for specific applications, enhancing overall system compatibility.
5. Wide Use Media
Suitable for the transmission of various media such as water, oil, gas, etc.
6. Applications
The brass nickel-plated straight quick-connect pneumatic coupling is widely used in the following fields: Automation equipment, Pneumatic tools, Medical devices, Food and beverage industry, Electronics and electrical appliances and so on.
The brass nickel-plated straight quick-connect pneumatic fitting is an adaptable and trustworthy part with multiple benefits. These include rapid connection capabilities, dependable sealing, and excellent corrosion resistance. Its sturdy build and user-friendly installation make it a top choice for various industrial uses. Picking the right coupling for your needs can boost your pneumatic system's efficiency, safety, and service life.
Installation Video

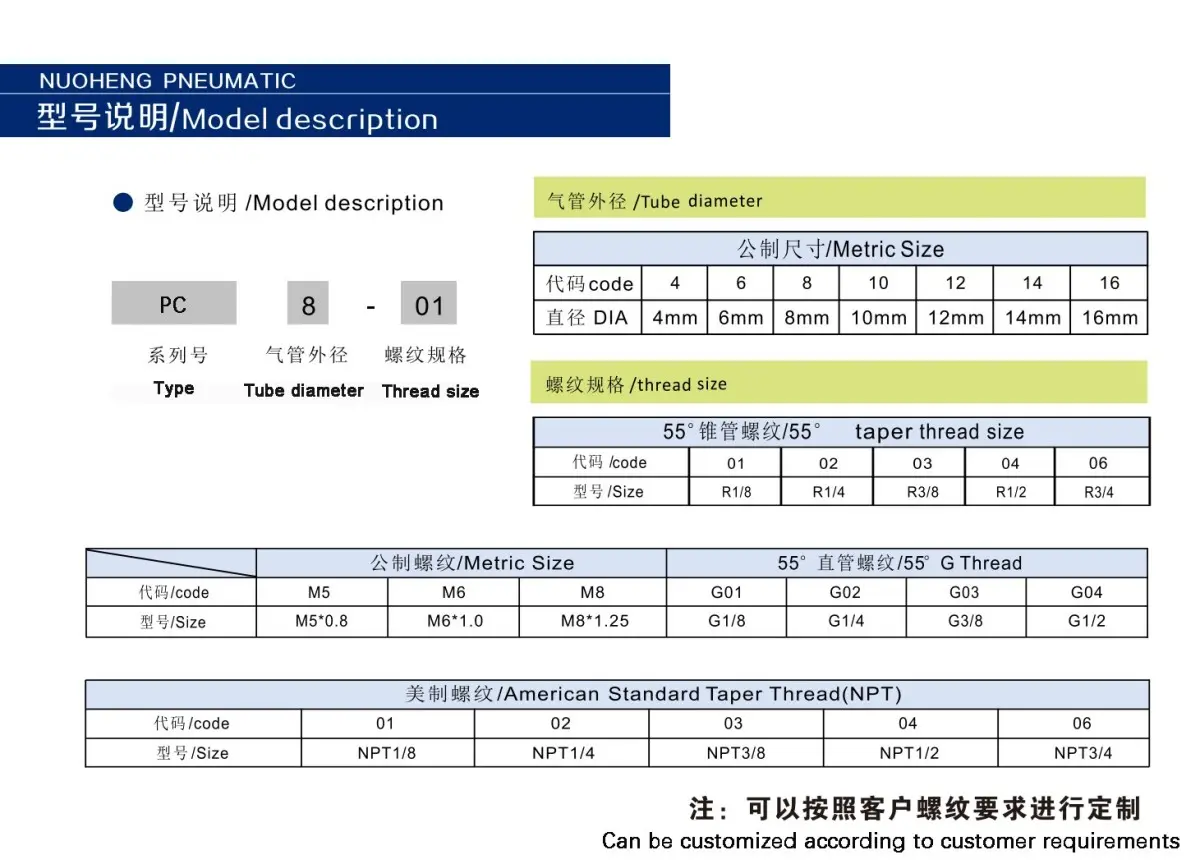

Model Description
Frequently Asked Questions
Q
What are the benefits of nickel plating on these brass fittings?
Nickel plating significantly increases corrosion resistance, which is ideal for harsh environments. It also enhances surface hardness to minimize wear, extends the coupling's overall lifespan, and gives it a clean, aesthetic finish.
Q
Do I need any specialized tools to install or disconnect these fittings?
No, these fittings feature a user-friendly one-touch plug-in design. You can quickly connect or disconnect pneumatic lines by hand without requiring any specialized tools, reducing maintenance downtime.
Q
What media are compatible with these straight quick-connect couplings?
They are highly versatile and suitable for the safe transmission of various media, including water, oil, gases, and compressed air.
Q
Can these fittings withstand high pressure and temperature conditions?
Yes, they are manufactured with high-quality sealing rings and durable H59-1 brass, ensuring reliable sealing performance and preventing leakage even under challenging temperature and pressure conditions.
Q
In which industries are these pneumatic fittings typically used?
They are widely used in automation equipment, pneumatic tools, medical devices, food and beverage processing lines, and electronics and electrical systems.
