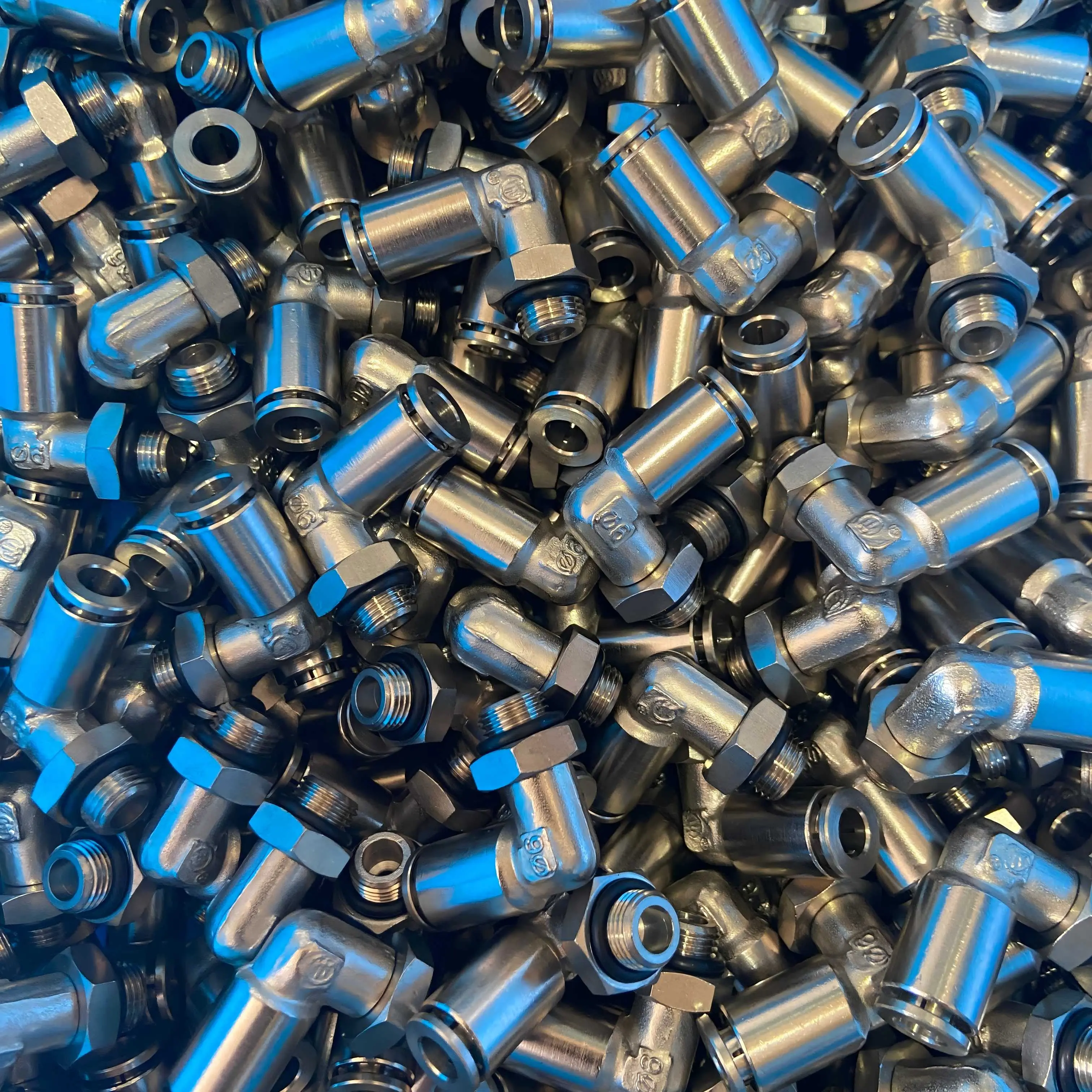

360-degree rotating threaded push-in elbow fittings are versatile and efficient fluid connection devices. They are commonly applied in automation, pneumatic pipeline systems, water treatment, chemical industry, and other related fields. They are designed to make installation easier and enhance the dependability and security of piping systems.

Send Inquiry

Product Description

Product Introduction

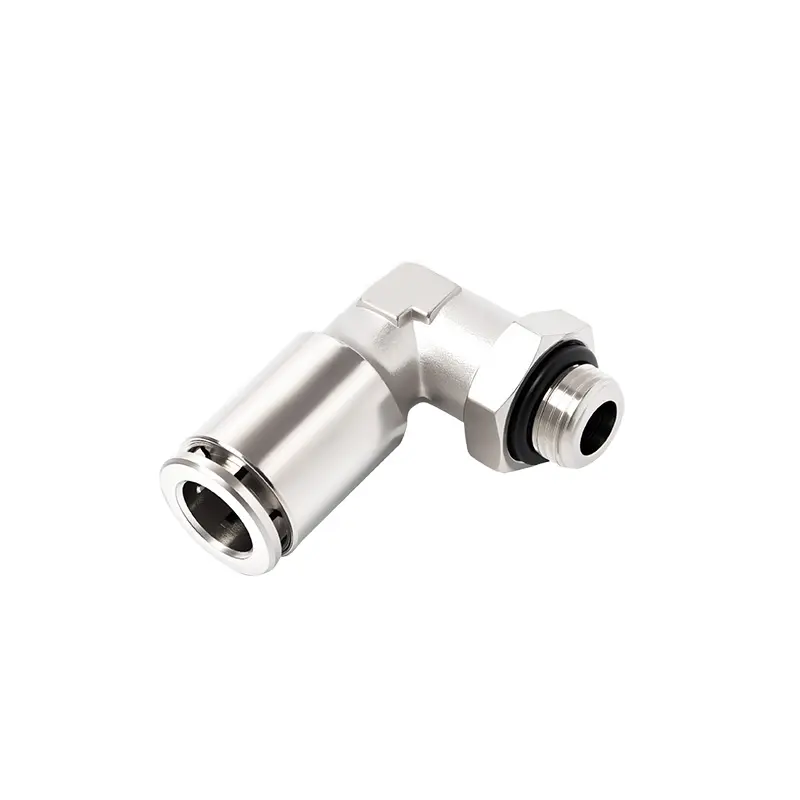

PLG-Elbow push in fitting component layout

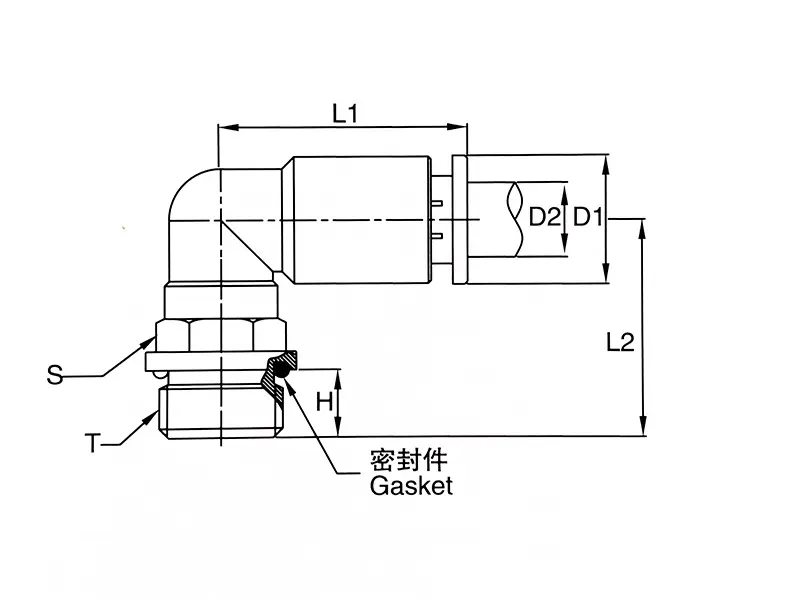

PLG-Elbow push in fitting technical view

PLG-Elbow G thread push in fittings (360° rotatable thread) Specifications

Model	L1	L2	H	T	S	D1	D2
NPLG4-M5	18	15	5	M5	10	9	4
NPLG4-01	18	19	7	G1/8	14	9	4
NPLG6-01	24	21	7	G1/8	14	12	6
NPLG6-02	24	23	9	G1/4	17	12	6
NPLG6-03	24	25	11	G3/8	21	12	6
NPLG6-04	24	26	12.5	G1/2	26	12	6
NPLG8-01	26	22	8	G1/8	14	14	8
NPLG8-02	26	24	9	G1/4	17	14	8
NPLG8-03	26	26	11	G3/8	21	14	8
NPLG8-04	26	27	12.5	G1/2	26	14	8
NPLG10-01	29	23	8	G1/8	14	16	10
NPLG10-02	29	25	9	G1/4	17	16	10
NPLG10-03	29	27	11	G3/8	21	16	10
NPLG10-04	29	28	12.5	G1/2	26	16	10
NPLG12-01	31	24	8	G1/8	14	18	12
NPLG12-02	31	26	9	G1/4	17	18	12
NPLG12-03	31	28	11	G3/8	21	18	12
NPLG12-04	31	29	12.5	G1/2	26	18	12
NPLG6-M8*1	24	21	8	M8*1	14	12	6
NPLG8-M8*1	-	-	-	-	-	-	-
NPLG6-M10*1	24	21	8	M10*1	14	12	6
NPLG8-M10*1	-	-	-	-	-	-	-
NPLG10-M16*1.5	-	-	-	-	-	-	-
NPLG12-M16*1.5	-	-	-	-	-	-	-

The size is measured manually, there may be slight deviations, only for reference.

Main Features

Elevate your pneumatic systems with our 360° Rotatable Nickel-Plated Brass Quick-Connect Elbow. This premium fitting is crafted for flexibility, durability, and flawless performance. It is suitable for industrial, automotive, and manufacturing settings, and built to comply with top-quality and reliability standards.

360° Rotatable Design

The novel rotating threaded design permits simple alignment and easy installation within confined or complicated spaces. Such adaptability diminishes strain on linked parts and guarantees ideal positioning unobstructed air flow.

High-Quality Material

Constructed from robust brass and coated with corrosion-resistant nickel plating, this elbow is engineered to endure harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.

Quick-Connect Mechanism

The push-to-connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.

Wide Compatibility

Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.

High-Pressure & Temp Resistance

Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.

Why Choose Our Product?

Increased Flexibility: rotation makes installation easier. Durability: long lasting nickel-plated brass structure. Efficiency: safe leak-free design. Versatility: works across multiple sectors.

Technical Specifications

Material: Brass with Nickel Plating

Rotation: 360° Rotatable Thread

Connection Type: Push in

Pressure Rating: 0-2.5Mpa

Temperature Range: -40-250℃ (according to the o-ring)

Applications

This quick-connect elbow is perfect for use in automation systems, assembly lines, and pneumatic tools in industrial machinery.

Automotive Systems: Fluid transfer applications, brake systems, and air compressors. Robotic arms, packing machines, and conveyor systems are examples of manufacturing equipment. HVAC and air conditioning systems are examples of general pneumatic systems.

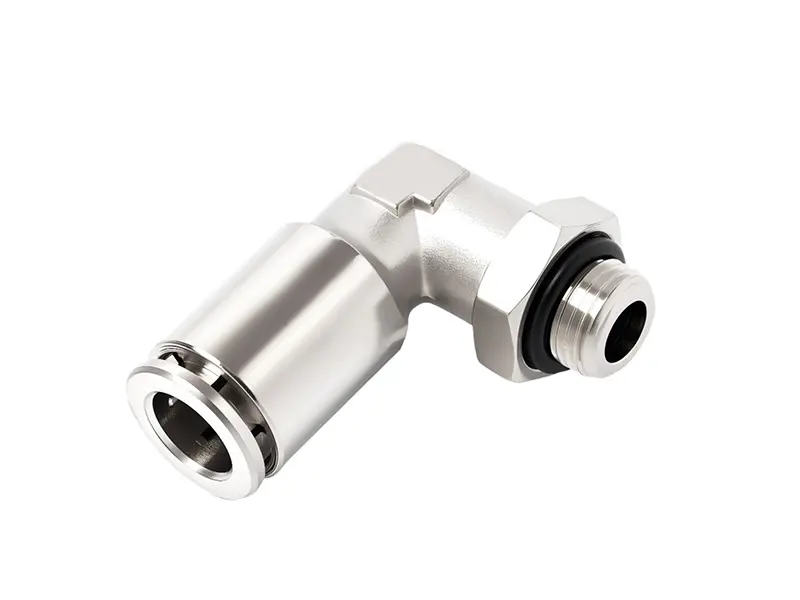

Detailed close-up of quick-connect layout

Engineering blueprint of rotating connector

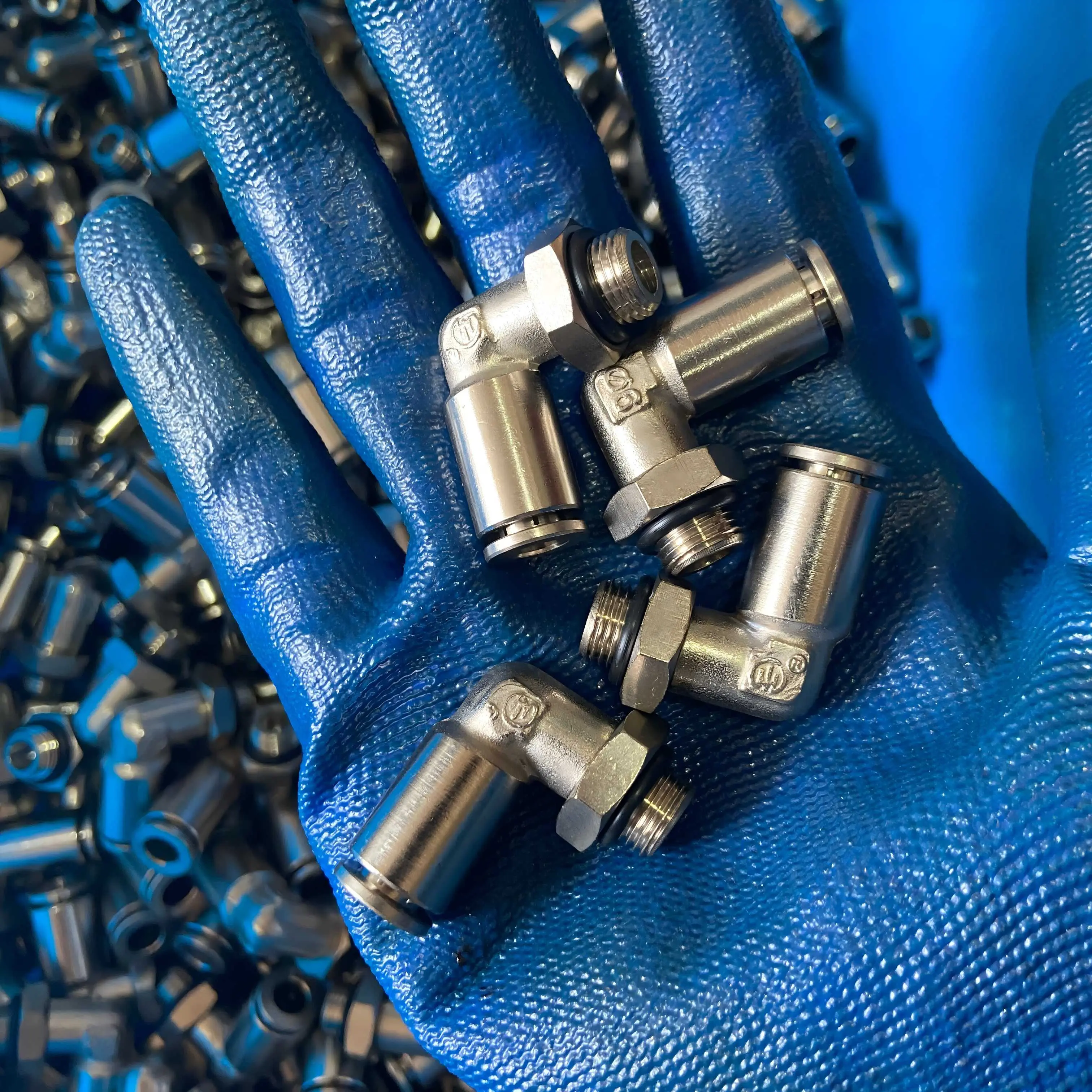

Packaging overview of the elbow fittings

Installation Video

Frequently Asked Questions

What is the benefit of the 360° rotatable design?

The 360° rotating capability allows the fitting to align seamlessly in tight or complex spaces. This reduces structural stress on connected tubes and components, preventing kinks and ensuring optimized airflow.

What materials are used to construct these elbow fittings?

These fittings are manufactured using high-grade brass core material with a protective nickel plating. This combination provides excellent structural strength and superior resistance to corrosion and wear.

What are the temperature and pressure limits of these connectors?

The fittings feature a working pressure range of 0-2.5 Mpa. They can reliably perform in environments ranging from -40°C up to 250°C, depending on the specific O-ring configuration used.

Is the quick-connect mechanism reliable?

Yes. The push-to-connect mechanism is designed for tool-free, secure, and instant locking. It guarantees a leak-free seal that reduces system downtime during maintenance or assembly line changes.

In what industries are these fittings typically used?

These elbow fittings are widely utilized in industrial machinery automation, packaging equipment, manufacturing assembly lines, automotive air systems, fluid transfer setups, and commercial HVAC networks.
