Due to human measurement, there may be small variations; this is merely for reference.
Main Features

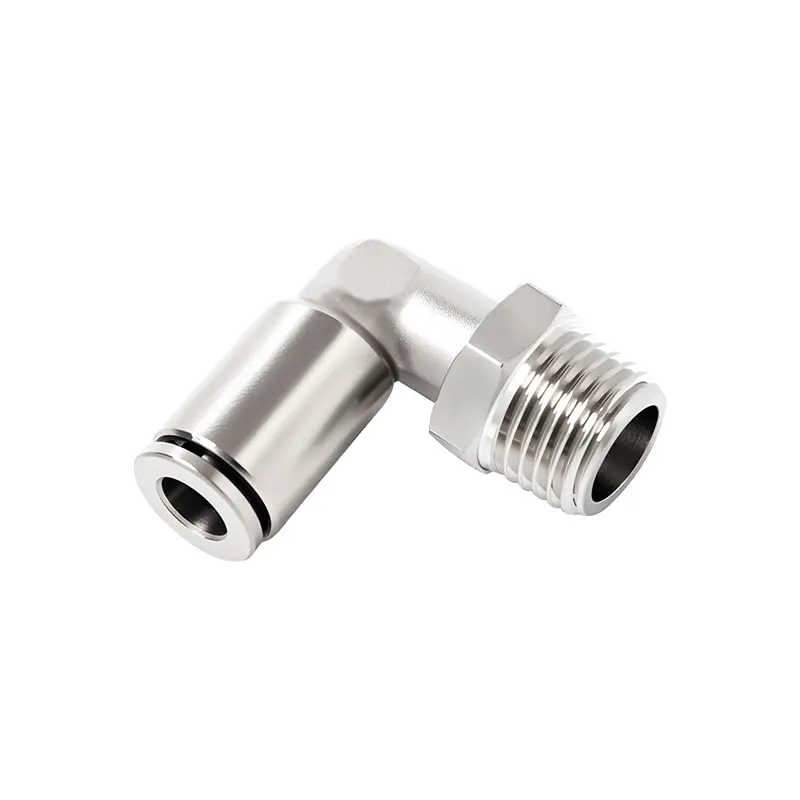

Our 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow is a high-end fitting made for flexibility, robustness, and smooth operation that will upgrade your pneumatic systems. This elbow is designed to satisfy the highest requirements for quality and dependability, regardless of whether you work in manufacturing, automotive, or industrial settings.
360° Rotatable Design
In confined or complicated areas, the inventive spinning thread makes alignment and installation simple. This adaptability guarantees ideal positioning for effective airflow and lessens stress on associated components.
High-Quality Material
This elbow is designed to endure extreme conditions, such as exposure to moisture, chemicals, and high pressure. It is made of sturdy brass and has a nickel plating that prevents corrosion.
Quick-Connect Mechanism
Time is saved during installation and maintenance because to the push-to-connect design, which guarantees quick, safe, and leak-free connections.
Wide Compatibility
It is a flexible option for many applications because it works with a range of tubing sizes and pneumatic systems.
High-Pressure & Temperature
Designed to function consistently in difficult environments by operating reliably in a broad temperature range and under high pressure.
Applications
Industrial Machinery: Ideal for pneumatic tools, production lines, and robotic systems.
Automotive Systems: Utilized in air compressors, braking systems, and fluid transfer processes.
Manufacturing Equipment: Fits conveyor systems, packaging devices, and robotic arms.
General Pneumatic Systems: Compatible with air conditioning, HVAC systems, and more.
Why Choose Our Product?
Enhanced Flexibility: The 360° rotation capability makes installation and alignment easier, including in difficult-to-access locations.
Durability: Made from nickel-plated brass, it offers long-term performance and is resistant to wear and corrosion.
Efficiency: The quick-connect mechanism reduces downtime and guarantees a secure, leak-proof connection.
Versatility: It is appropriate for a broad spectrum of pneumatic applications and is a dependable option across different industries.
Technical Specifications
Material: Brass with Nickel Plating
Rotation: 360° Rotatable Thread
Connection Type: Push in
Pressure Rating: 0-2.5Mpa
Temperature Range: -40 to 250℃ (according to the inside o-ring)
Installation Video
Frequently Asked Questions
1. What materials are used to manufacture these elbow push-in fittings?
These fittings are constructed from premium-grade brass and feature a protective nickel plating to provide outstanding durability and superior resistance to corrosion and wear.
2. Does the fitting rotate freely after it has been installed?
Yes, this elbow fitting features a 360° rotatable thread design, allowing for easy alignment and optimal positioning in tight spaces even after installation.
3. What is the maximum working pressure rating for these fittings?
The fittings can operate reliably under a working pressure range of 0 to 2.5 Mpa, making them suitable for high-pressure industrial applications.
4. What is the operational temperature range for this product?
The fittings can withstand a broad temperature range of -40℃ to 250℃. The exact temperature limit depends on the material specifications of the internal O-ring.
5. In what environments are these elbow quick-connect fittings typically used?
They are highly versatile and widely used in industrial machinery, automotive applications (such as air compressors and braking systems), packaging devices, conveyor systems, and general HVAC pneumatic setups.
6. How does the quick-connect mechanism benefit installation?
The push-to-connect structure allows you to establish a secure, leak-free connection instantly without requiring special tools, significantly reducing installation time and system downtime during maintenance.
