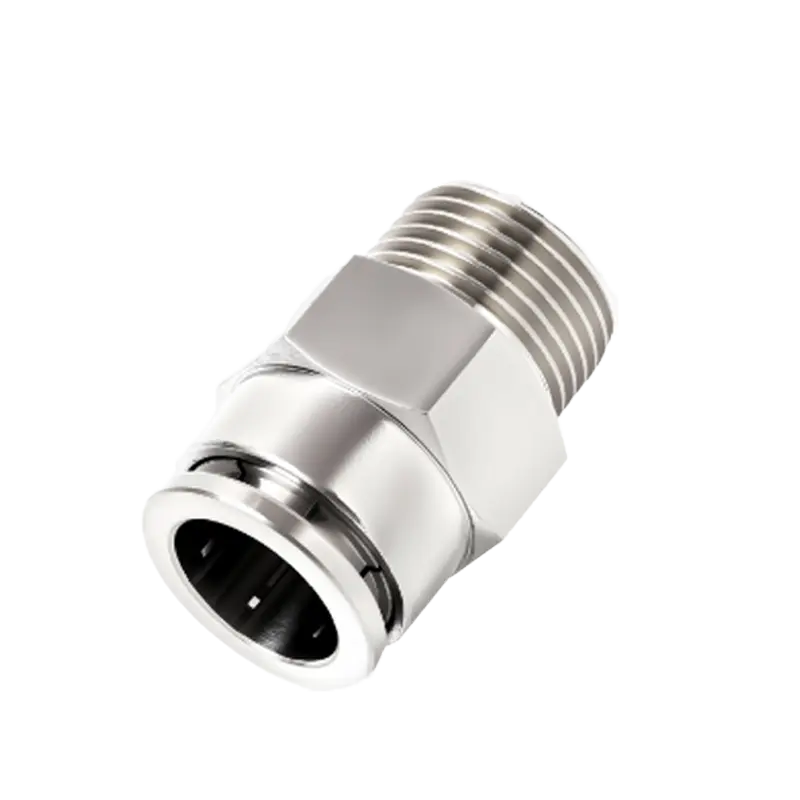

PC male push in straight fittings is an efficient and convenient fluid connection device, widely used in Energy storage fire protection. It is designed to simplify the installation process and improve the reliability and safety of the flame-retardant pipeline system.
| Material | Nickel plated brass |
|---|---|
| Working pipe | Flame-retardant pipe |
| Working pressure | 0-6.0Mpa |
| Working temperature | -20℃-100℃ (HNBR sealing) (If higher/lower temperature resistance is required, the sealing ring can be replaced) |

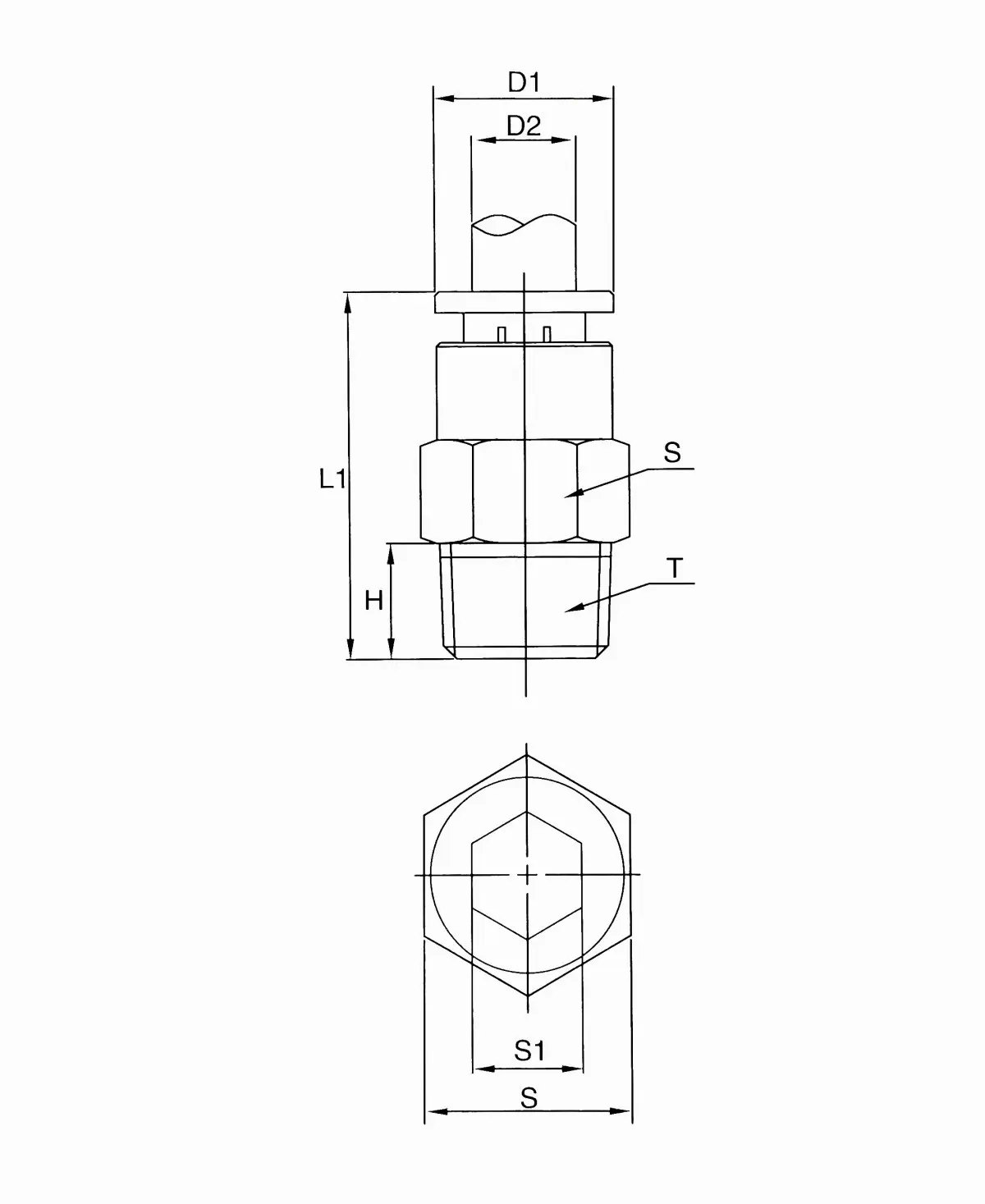

| Model | L1 | S1 | H | S | T | D1 | D2 |
|---|---|---|---|---|---|---|---|
| NPC4-M5 | 22 | 2 | 5.5 | 10 | M5*1 | 9 | 4 |
| NPC4-M6 | 22 | 2 | 5.5 | 10 | M6*1 | 9 | 4 |
| NPC4-M8*1 | 22 | 2 | 7 | 10 | M8*1 | 9 | 4 |
| NPC4-10*1 | 23 | 2 | 7 | 12 | M10*1 | 9 | 4 |
| NPC4-01 | 23 | 2 | 7 | 10 | R1/8 | 9 | 4 |
| NPC4-02 | 24 | 2 | 9 | 14 | R1/4 | 9 | 4 |
| NPC6-01 | 25 | 5 | 7 | 12 | R1/8 | 12 | 6 |
| NPC6-02 | 25 | 5 | 9 | 14 | R1/4 | 12 | 6 |
| NPC6-03 | 22 | 5 | 10 | 17 | R3/8 | 12 | 6 |
| NPC6-04 | 22 | 5 | 11 | 21 | R1/2 | 12 | 6 |
| NPC8-01 | 28 | 5 | 7 | 14 | R1/8 | 14 | 8 |
| NPC8-02 | 28 | 6 | 9 | 14 | R1/4 | 14 | 8 |
| NPC8-03 | 22 | 6 | 10 | 17 | R3/8 | 14 | 8 |
| NPC8-04 | 22 | 6 | 11 | 21 | R1/2 | 14 | 8 |
| NPC10-01 | 30 | 5 | 7 | 17 | R1/8 | 16 | 10 |
| NPC10-02 | 31 | 6 | 9 | 16 | R1/4 | 16 | 10 |
| NPC10-03 | 31 | 8 | 10 | 17 | R3/8 | 16 | 10 |
| NPC10-04 | 25 | 8 | 11 | 21 | R1/2 | 16 | 10 |
| NPC12-01 | 30 | 5 | 7 | 19 | R1/8 | 16 | 12 |
| NPC12-02 | 32 | 6 | 9 | 19 | R1/4 | 18 | 12 |
| NPC12-03 | 31 | 9 | 10 | 19 | R3/8 | 18 | 12 |
| NPC12-04 | 25 | 9 | 11 | 21 | R1/2 | 18 | 12 |
| NPC14-02 | 30 | 6 | 9 | 22 | R1/4 | 21 | 14 |
| NPC14-03 | 31 | 9 | 10 | 22 | R3/8 | 21 | 14 |
| NPC14-04 | 33 | 12 | 11 | 22 | R1/2 | 21 | 14 |
| NPC14-06 | 38 | 12 | 13 | 27 | R3/4 | 21 | 14 |
| NPC16-04 | 35 | 12 | 11 | 24 | R1/2 | 23 | 16 |
| NPC16-06 | 38 | 14 | 13 | 27 | R3/4 | 23 | 16 |
| * The size is measured manually, there may be slight deviations, only for reference. | |||||||
The brass nickel-plated straight quick-connect is a component designed for Energy storage fire protection. Its core features include the use of brass nickel-plated material and a quick-connect function, significantly enhancing work efficiency and safety.
Adopts a one-button plug-in design, which can be quickly connected and disconnected without tools, greatly saving installation and maintenance time.
Equipped with high-quality sealing rings to ensure that the connector can still maintain good sealing performance under high pressure and high temperature environment to prevent leakage.
Made of H59-1 brass material, it is corrosion-resistant and wear-resistant. Nickel Plating further enhances corrosion resistance, increases surface hardness, improves wear resistance, and extends the coupling's lifespan while enhancing the overall quality.
Complete specifications to meet the assembly requirements of different sizes of threads and pipes. This versatility ensures that the right coupling can be selected for any specific application.
Suitable for the transmission of various media such as water, oil, gas, etc.
The brass nickel-plated straight quick-connect pneumatic coupling is widely used in the following fields: Automation equipment, Pneumatic tools, Medical devices, Food and beverage industry, Electronics and electrical appliances, and so on.
The brass nickel-plated straight Energy storage fire protection is a versatile and reliable component that offers numerous advantages, including quick-connect functionality, reliable sealing, and strong corrosion resistance. Its robust construction and ease of installation make it an ideal choice for a wide range of applications across various industries. By selecting the appropriate coupling for your specific needs, you can enhance the efficiency, safety, and longevity of your pneumatic system.
The fittings are made of high-quality H59-1 brass with a nickel-plated finish. This composition ensures strong corrosion resistance, wear resistance, and an extended lifespan in challenging environments.
They operate efficiently under a working pressure of 0 to 6.0 Mpa and temperature range of -20℃ to 100℃ with the default HNBR sealing. For higher or lower temperature demands, the sealing ring can be customized or replaced.
No. These fittings feature an optimized one-button plug-in design that enables quick connection and disconnection by hand, saving considerable installation and maintenance time.
They are highly versatile and suitable for transmitting multiple media types, including water, oil, and gas.
These fittings are designed to work seamlessly with flame-retardant pipes, making them exceptionally reliable for safety-critical applications such as energy storage fire protection systems.
Yes, we provide a wide range of specifications (from NPC4 to NPC16) with standard thread options like M5, M6, R1/8, R1/4, R3/8, R1/2, etc., to meet diverse piping configuration requirements.
