High-Quality PE-T type push in fittings Suppliers, Company

An effective and practical fluid connection tool, T type push-in fittings are used extensively in water treatment, automation, pneumatic pipeline systems, the chemical industry, and other domains. It is intended to increase the pipeline system's dependability and safety while streamlining the installation procedure.

Send Inquiry

Product Description

Product Introduction

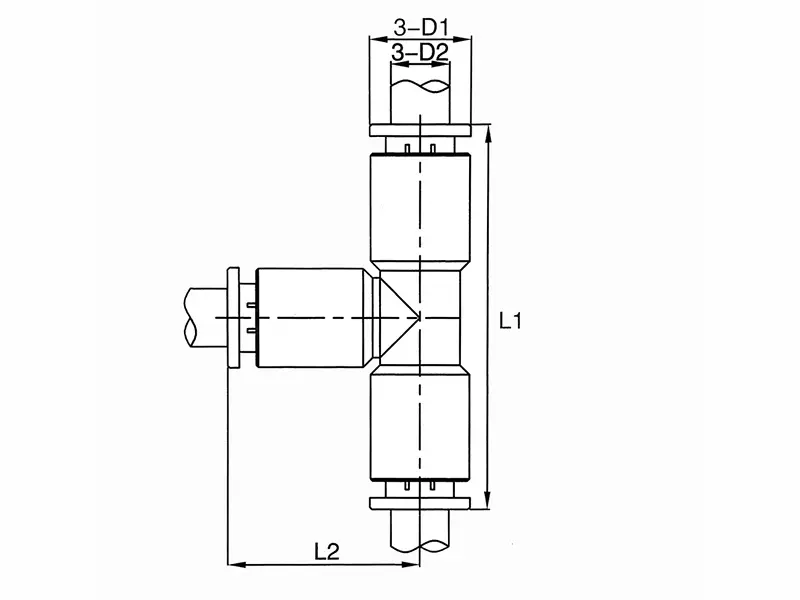

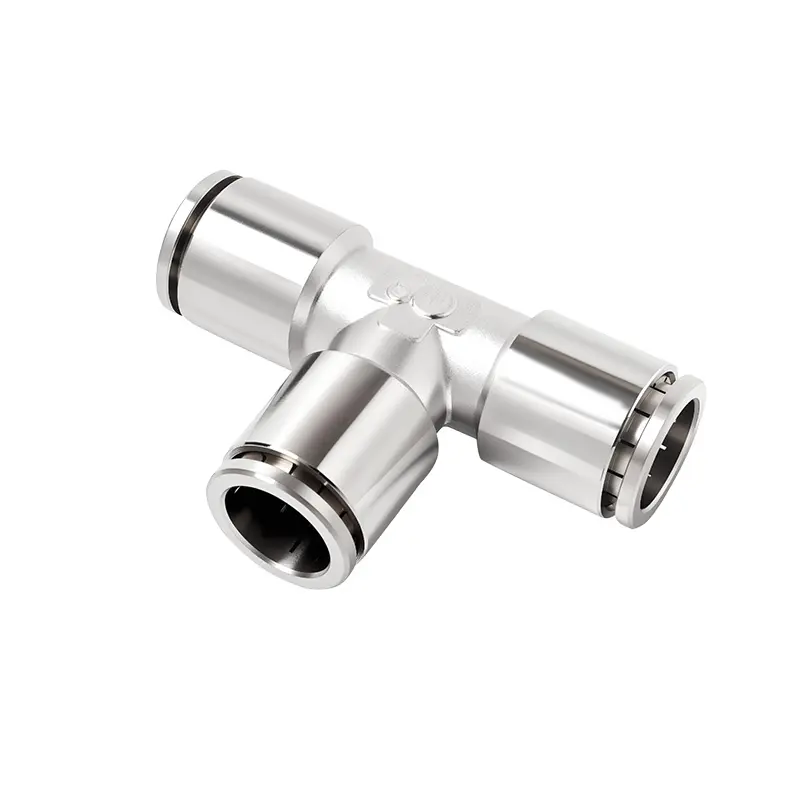

PE-T type push in fittings

Model	L1	L2	D1	D2
NPE4	35	17.5	9	4
NPE6	47	23.5	12	6
NPE8	52	26	14	8
NPE10	59	29.5	16	10
NPE12	62	31	18	12
NPE14	76	38	21	14
NPE16	76	38	23	16

The size is measured manually, there may be slight deviations, only for reference.

Main Features

Pneumatic pipelines can be quickly connected and disconnected with the help of the brass nickel-plated T quick-connect pneumatic coupler. Its key characteristics, which greatly improve labor productivity and safety, include the use of brass nickel-plated material and a quick-connect feature.

1. Quick installation

Uses a one-button plug-in design that saves a significant amount of time during installation and maintenance by enabling rapid connections and disconnections without the need for equipment.

2. High sealing

Furnished with premium sealing rings to guarantee that the connector can continue to work well in sealing situations involving high pressure and high temperatures in order to stop leaks.

3. Durable material

Made of H59-1 brass material, it is corrosion-resistant and wear-resistant, suitable for a variety of environments. Nickel Plating further enhances corrosion resistance, making it suitable for harsh environments. Increases surface hardness, improving wear resistance and extending the coupling's lifespan. Aesthetic appeal, enhancing the product's overall quality.

4. Various specifications

Complete specifications to meet the assembly requirements of different sizes of threads and pipes. This versatility ensures that the right coupling can be selected for any specific application, enhancing overall system compatibility.

5. Wide use media

Suitable for the transmission of various media such as water, oil, gas, etc.

6. Applications

The following industries make extensive use of the brass nickel-plated elbow quick-connect pneumatic coupling: automation equipment, pneumatic tools, medical devices, food and beverage sector, electronics and electrical appliances, and so on.

Quick-connect functionality, dependable sealing, and robust corrosion resistance are just a few of the many benefits that come with the brass nickel-plated elbow quick-connect pneumatic fitting. It is a great option for many applications in a variety of sectors due to its sturdy design and simplicity of installation. You may increase your pneumatic system's lifetime, safety, and efficiency by choosing the right coupler for your particular requirements.

Installation video

Frequently Asked Questions

Q What materials are PE-T type push-in fittings made of?

They are manufactured using H59-1 brass with a premium nickel-plated finish. This combination provides excellent durability, wear resistance, and high corrosion protection in demanding environments.

Q Can these quick-connect pneumatic couplers handle extreme conditions?

Yes, they are equipped with high-quality sealing rings that ensure reliable and long-lasting sealing performance, even in high-pressure and high-temperature environments.

Q Do I need special tools to install or disconnect these fittings?

No, the fittings utilize a convenient one-button plug-in design. This allows for rapid manual connection and disconnection without requiring any special tools, reducing maintenance downtime.

Q What kind of media can be transmitted through these couplers?

These pneumatic fittings are versatile and suitable for the transmission of various media, including water, oil, and gas.

Q In what industries are these quick-connect fittings commonly used?

They are widely applied in industrial automation equipment, pneumatic tools, medical devices, the food and beverage sector, and electrical or electronic appliances.

Q What sizes and specifications are available?

We offer complete specification ranges from NPE4 to NPE16 (including NPE6, NPE8, NPE10, NPE12, and NPE14) to accommodate different thread configurations and pipe diameters.
