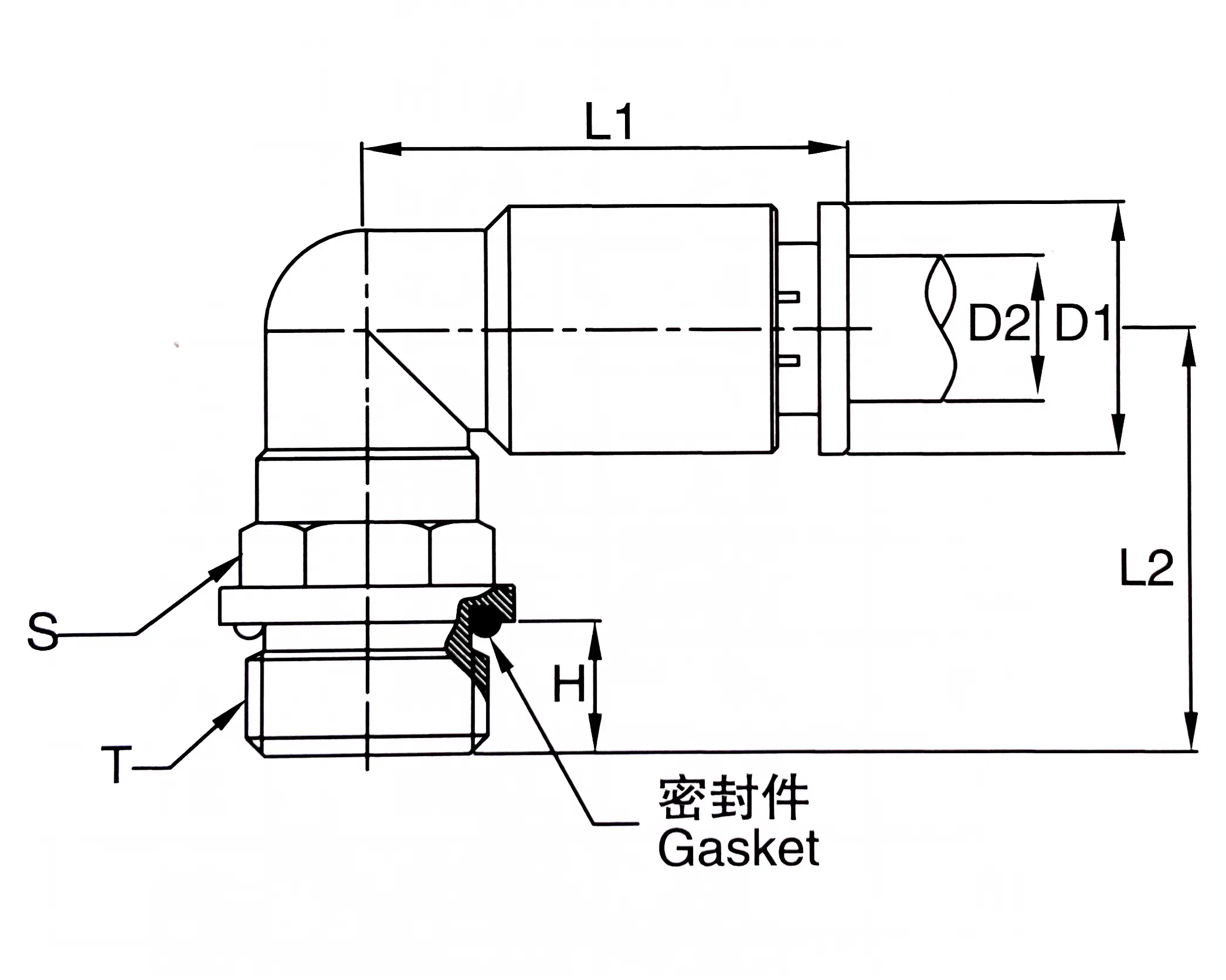

| PLG-2-Elbow G thread push on fittings (360° rotatable thread) | L1 | L2 | H | T | S1 | S2 | D*d | |
|---|---|---|---|---|---|---|---|---|
| NKPLG4-M5 | NKPLG4-M5 | 17 | 15 | 5 | M5 | 8 | 10 | 4*2 |
| NKPLG6-01 | 21 | 22 | 8 | G1/8 | 12 | 14 | 6*4 | |
| NKPLG6-02 | 21 | 23 | 9 | G1/4 | 12 | 17 | 6*4 | |
| NKPLG6-03 | 21 | 26 | 11 | G3/8 | 12 | 21 | 6*4 | |
| NKPLG6-04 | 21 | 28 | 12.5 | G1/2 | 12 | 26 | 6*4 | |
| NKPLG8-01 | 25 | 25 | 8 | G1/8 | 13 | 14 | 8*5 | |
| NKPLG8-02 | 25 | 26 | 9 | G1/4 | 13 | 17 | 8*5 | |
| NKPLG8-03 | 25 | 28 | 11 | G3/8 | 13 | 21 | 8*5 | |
| NKPLG8-04 | 25 | 30 | 12.5 | G1/2 | 13 | 26 | 8*5 | |
| NKPLG10-01 | 25 | 26 | 8 | G1/8 | 15 | 14 | 10*6.5 | |
| NKPLG10-02 | 25 | 27 | 9 | G1/4 | 15 | 17 | 10*6.5 | |
| NKPLG10-03 | 25 | 28 | 11 | G3/8 | 15 | 21 | 10*6.5 | |
| NKPLG10-04 | 25 | 30 | 12.5 | G1/2 | 15 | 26 | 10*6.5 | |
| NKPLG12-03 | 26 | 27 | 8 | G1/8 | 17 | 14 | 12*8 | |
| NKPLG12-02 | 26 | 28 | 9 | G1/4 | 17 | 17 | 12*8 | |
| NKPLG12-03 | 26 | 30 | 11 | G3/8 | 17 | 21 | 12*8 | |
| NKPLG12-04 | 26 | 31 | 12.5 | G1/2 | 17 | 26 | 12*8 | |
| NKPLG16-04 | 31 | 32 | 12.5 | G1/2 | 22 | 26 | 16*12 | |
| NKPLG16-06 | 31 | 36 | 14 | G3/4 | 22 | 30 | 16*12 | |

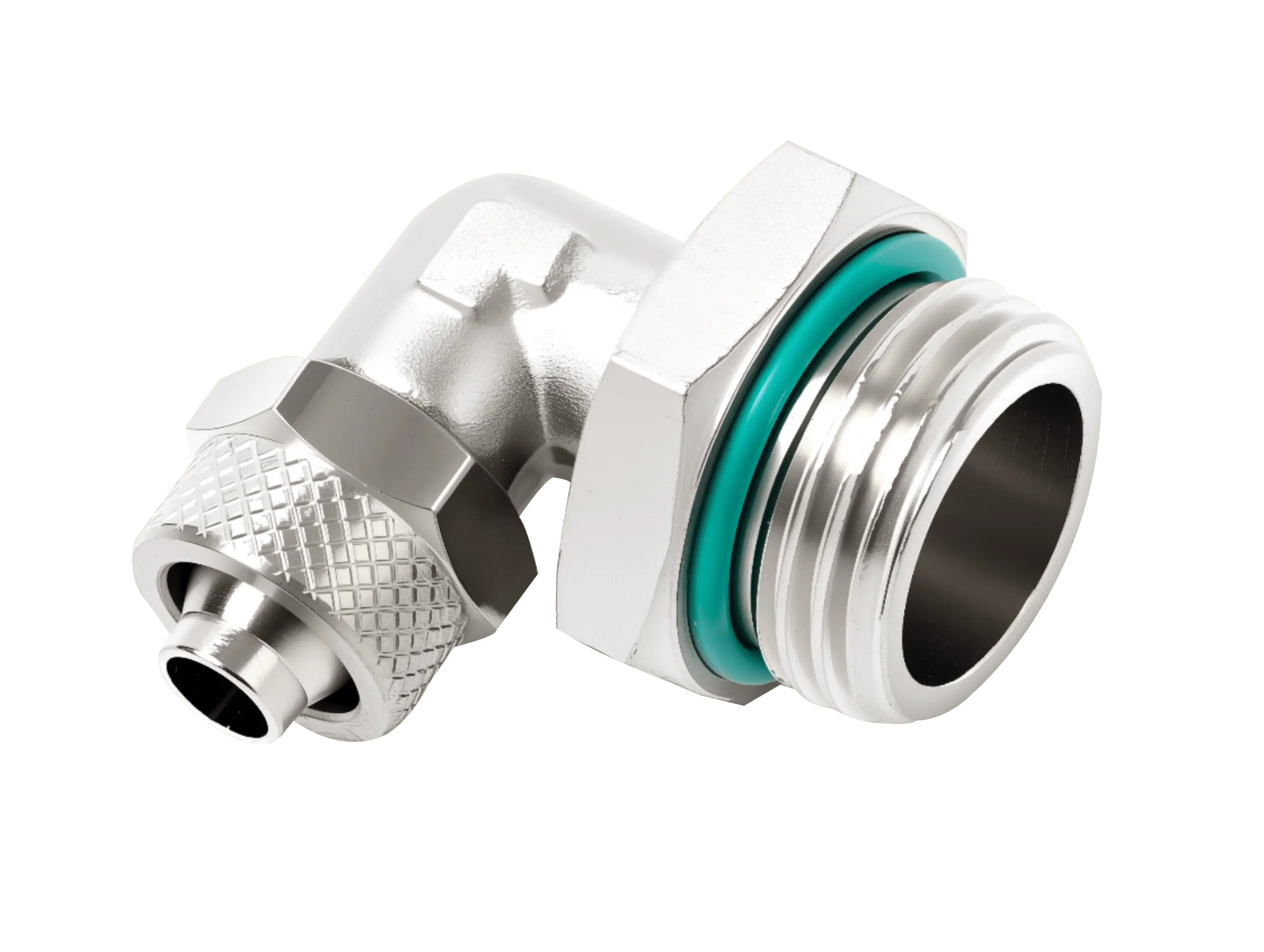

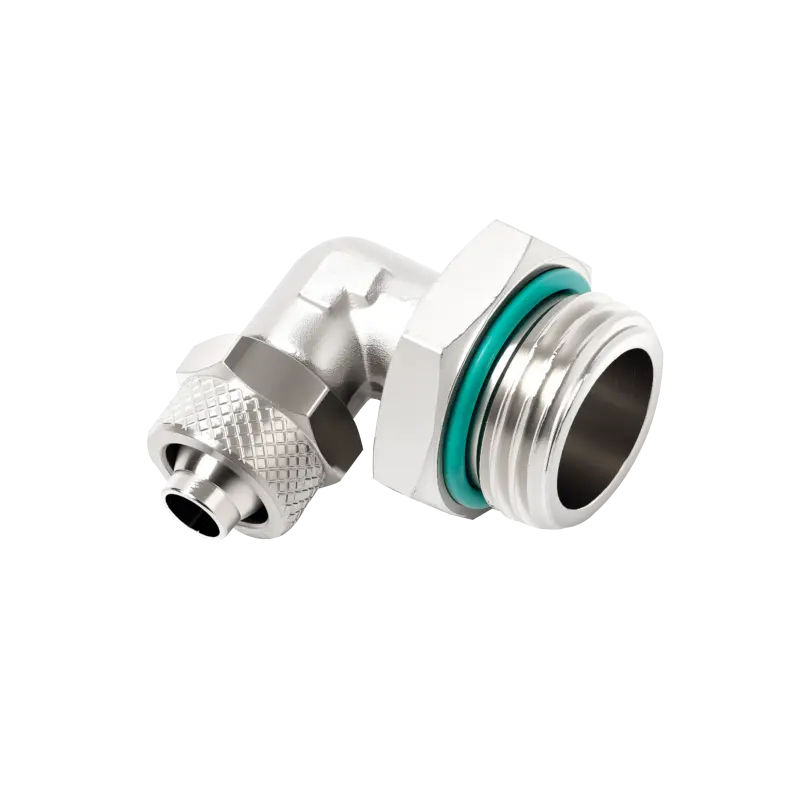

Upgrade your pneumatic systems with our 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow, a premium fitting designed for flexibility, durability, and seamless performance. Whether you're working in industrial, automotive, or manufacturing environments, this elbow is engineered to meet the highest standards of quality and reliability.
The innovative rotating thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.
Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.
The push on connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.
Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.
Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.
Ideal for use in Industrial Machinery (pneumatic tools, assembly lines), Automotive Systems (air compressors, brake systems), Manufacturing Equipment (conveyor systems, packaging machines), and General Pneumatic Systems.
The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.
Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.
The quick-connect design minimizes downtime and ensures a secure, leak-free connection.
Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.

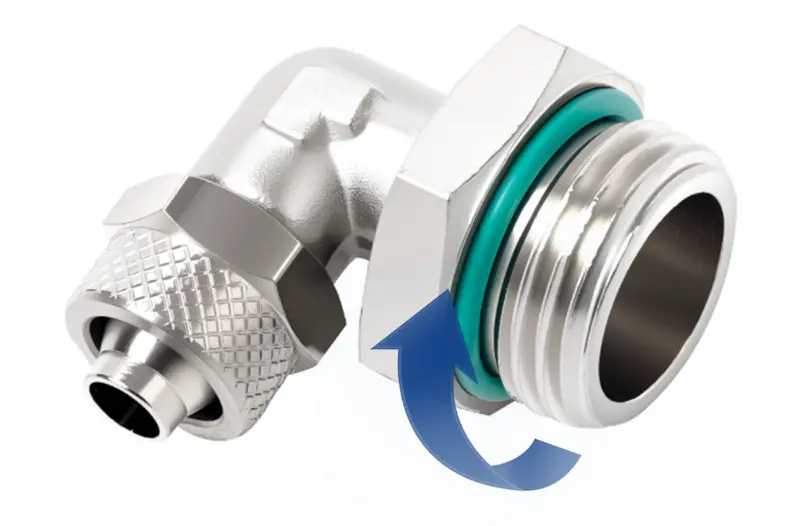

The 360° rotatable design allows the elbow fitting to spin freely, simplifying connection alignment in tight, hard-to-reach spaces and minimizing tube twist and tension stress.
Thanks to their brass base with protective nickel plating, these fittings offer high corrosion and wear resistance, making them ideal for humid, chemical-exposed, and harsh industrial environments.
These fittings are designed to operate safely within a pressure rating of 0 to 2.5 Mpa, accommodating most high-pressure pneumatic tools and machinery.
Yes, our rotatable elbows are engineered to perform reliably under a broad temperature range from -20°C up to 220°C, suitable for heat-intensive setups.
These connectors are compatible with various standard polyurethane (PU), nylon, and polyethylene (PE) tubing sizes, matching the outer and inner diameters detailed in our specification table.
