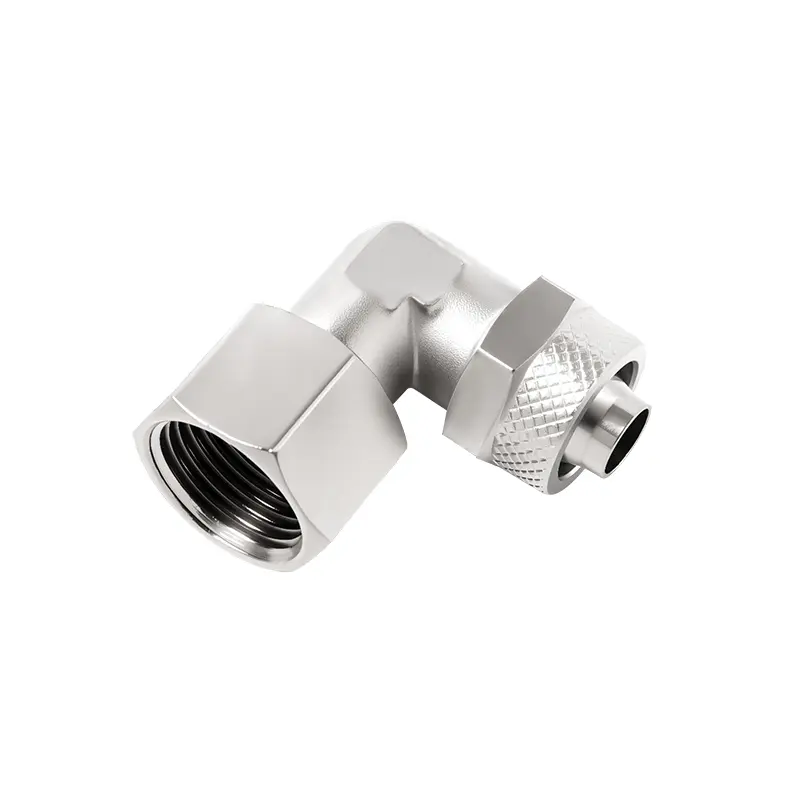

Wholesale PLF-Elbow female push on fittings(360° rotatable thread) Factory, Companies

Pneumatic pipeline systems, automation, water treatment, the chemical industry, and other fields make considerable use of 360Â° rotating thread push-on elbow fittings, a useful and efficient fluid connection tool. It aims to simplify the installation process and improve the pipeline system's dependability and safety.

Send Inquiry

Product Description

Product Introduction

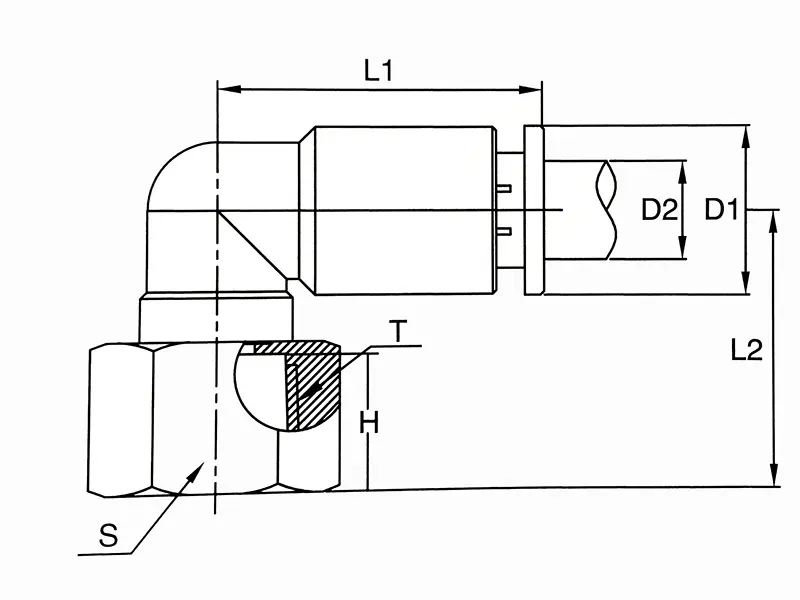

Model	L	L1	S1	S2	H	T
NKPLF6-01	21	22	12	14	8	G1/8
NKPLF6-02	21	23	12	16	9.5	G1/4
NKPLF6-03	21	26	12	21	11	G3/8
NKPLF6-04	21	27	12	24	13	G1/2
NKPLF8-01	25	23	13	14	8	G1/8
NKPLF8-02	25	25	13	16	9.5	G1/4
NKPLF8-03	25	26	13	21	11	G3/8
NKPLF8-04	25	28	13	24	13	G1/2
NKPLF10-01	25	24	15	14	8	G1/8
NKPLF10-02	25	26	15	16	9.5	G1/4
NKPLF10-03	25	28	15	21	11	G3/8
NKPLF10-04	25	29	15	24	13	G1/2
NKPLF12-02	26	27	17	16	9.5	G1/4
NKPLF12-03	26	29	17	21	11	G3/8
NKPLF12-04	26	30	17	24	13	G1/2
NKPLF16-04	-	-	-	-	-	-
NKPLF6-M8*1	-	-	-	-	-	-
NKPLF8-M8*1	-	-	-	-	-	-
NKPLF6-M10*1	-	-	-	-	-	-
NKPLF8-M10*1	-	-	-	-	-	-
NKPLF8-M12*1.25	-	-	-	-	-	-
NKPLF10-M12*1.25	-	-	-	-	-	-
NKPLF12-M16*1.5	-	-	-	-	-	-
NKPLF16-M16*1.5	-	-	-	-	-	-

The size is measured manually, there may be slight deviations, only for reference.

Main Features

Your pneumatic systems will be upgraded with our 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow, a premium fitting designed for flexibility, durability, and seamless operation. Whether you work in manufacturing, automotive, or industrial sectors, this elbow is made to meet the highest standards for quality and dependability.

Key Features

360° Rotatable Design

The innovative spinning thread simplifies alignment and installation in tight or complex spaces. This flexibility reduces stress on related components and ensures optimal airflow.

High-Quality Material

This elbow's nickel coating keeps it from corroding and it is composed of strong brass. Among other harsh conditions, it is made to withstand exposure to high pressure, chemicals, and moisture.

Quick-Connect Mechanism

Time is saved during installation and maintenance because to the push-on connect design, which guarantees quick, safe, and leak-free connections.

Wide Compatibility

Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.

High-Pressure and Temperature Resistance

Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.

Applications

Industrial Machinery: Pneumatic tools, assembly lines, and automation systems.

Automotive Systems: Air compressors, brake systems, and fluid transfer applications.

Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.

General Pneumatic Systems: Air conditioning, HVAC systems, and more.

Why Choose Our Product?

Enhanced Maneuverability: The 360° rotation function makes installation and alignment easier, including in hard-to-reach spots.

Longevity: Made from nickel-plated brass, it offers durable performance and is resistant to wear and corrosion.

Efficiency: The quick-connect mechanism reduces downtime and ensures a secure, leak-proof connection.

Versatility: It is appropriate for a wide range of pneumatic applications and is a reliable option across different industries.

Technical Specifications

Material Nickel-Plated Brass

Rotation 360° Rotating Thread

Connection Type Push-On

Pressure Rating 0-2.5 MPa

Temperature Range -40-250°C (dependent on the internal O-ring)

Installation Video

Frequently Asked Questions (FAQ)

What are the benefits of the 360° rotatable design?

The 360° rotating thread allows the fitting to align effortlessly in tight, narrow, or complex spaces. It minimizes mechanical stress on the tubing and related components, ensuring optimal airflow and simplified installation.

Why is nickel-plated brass used for this elbow?

Nickel-plated brass combines the structural strength of brass with the excellent corrosion and wear resistance of nickel. This protects the elbow from moisture, chemicals, and high-pressure environments.

How does the quick-connect mechanism work?

The push-on connection allows pneumatic tubing to be inserted directly and securely locked into place instantly. This eliminates the need for special tools, creating tight, leak-free seals and saving setup time.

What is the pressure rating of this pneumatic elbow?

This fitting features a pressure rating of 0-2.5 MPa, rendering it highly dependable for low-to-high pressure industrial pneumatic configurations.

Is this product compatible with high temperatures?

Yes, it is designed to operate within a wide temperature range of -40°C to 250°C. Please note that the exact temperature limits depend on the specific internal O-ring utilized in your system.
