Product Introduction

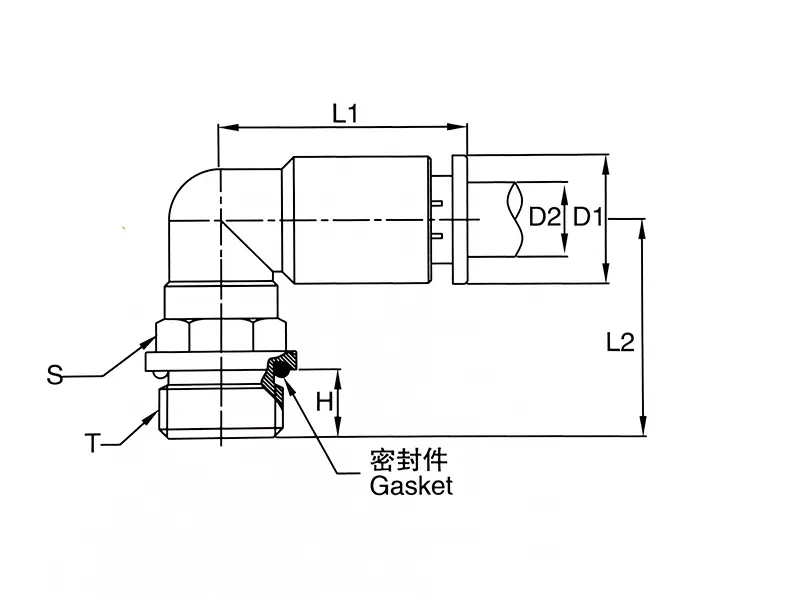

| PLG-Elbow G/BSPP thread push on fittings (360° rotatable thread) |
| Model |
L1 |
L2 |
H |
T |
S1 |
S2 |
D*d |
| NKPLG4-M5 |
17 |
15 |
5 |
M5 |
8 |
10 |
4*2 |
| NKPLG6-01 |
21 |
22 |
8 |
G1/8 |
12 |
14 |
6*4 |
| NKPLG6-02 |
21 |
23 |
9 |
G1/4 |
12 |
17 |
6*4 |
| NKPLG6-03 |
21 |
26 |
11 |
G3/8 |
12 |
21 |
6*4 |
| NKPLG6-04 |
21 |
28 |
12.5 |
G1/2 |
12 |
26 |
6*4 |
| NKPLG8-01 |
25 |
25 |
8 |
G1/8 |
13 |
14 |
8*5 |
| NKPLG8-02 |
25 |
26 |
9 |
G1/4 |
13 |
17 |
8*5 |
| NKPLG8-03 |
25 |
28 |
11 |
G3/8 |
13 |
21 |
8*5 |
| NKPLG8-04 |
25 |
30 |
12.5 |
G1/2 |
13 |
26 |
8*5 |
| NKPLG10-01 |
25 |
26 |
8 |
G1/8 |
15 |
14 |
10*6.5 |
| NKPLG10-02 |
25 |
27 |
9 |
G1/4 |
15 |
17 |
10*6.5 |
| NKPLG10-03 |
25 |
28 |
11 |
G3/8 |
15 |
21 |
10*6.5 |
| NKPLG10-04 |
25 |
30 |
12.5 |
G1/2 |
15 |
26 |
10*6.5 |
| NKPLG12-03 |
26 |
27 |
8 |
G1/8 |
17 |
14 |
12*8 |
| NKPLG12-02 |
26 |
28 |
9 |
G1/4 |
17 |
17 |
12*8 |
| NKPLG12-03 |
26 |
30 |
11 |
G3/8 |
17 |
21 |
12*8 |
| NKPLG12-04 |
26 |
31 |
12.5 |
G1/2 |
17 |
26 |
12*8 |
| NKPLG16-04 |
31 |
32 |
12.5 |
G1/2 |
22 |
26 |
16*12 |
| NKPLG16-06 |
31 |
36 |
14 |
G3/4 |
22 |
30 |
16*12 |
The size is measured manually, there may be slight deviations, only for reference.
Main features

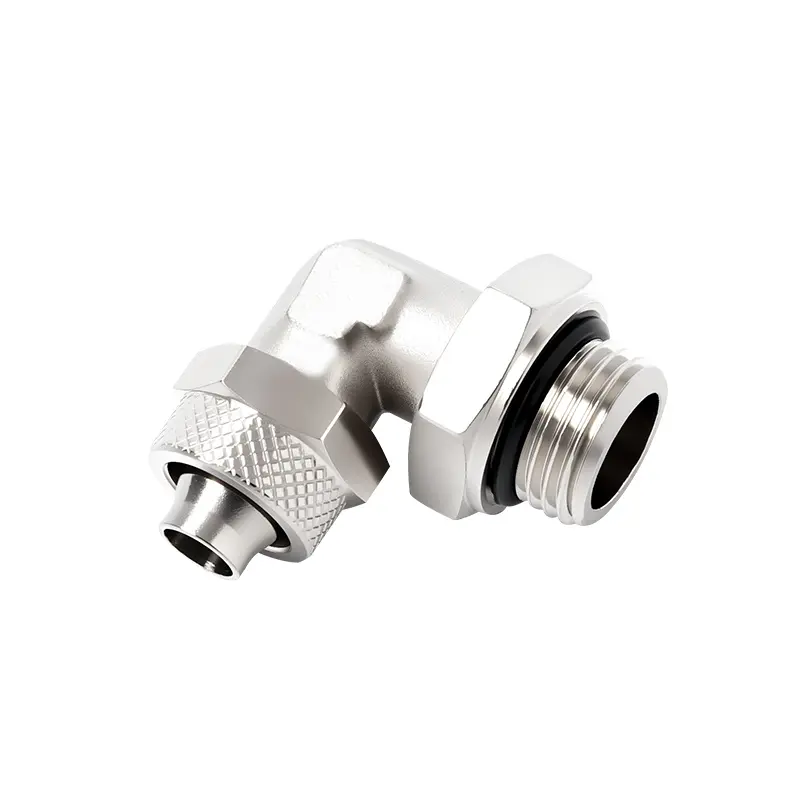

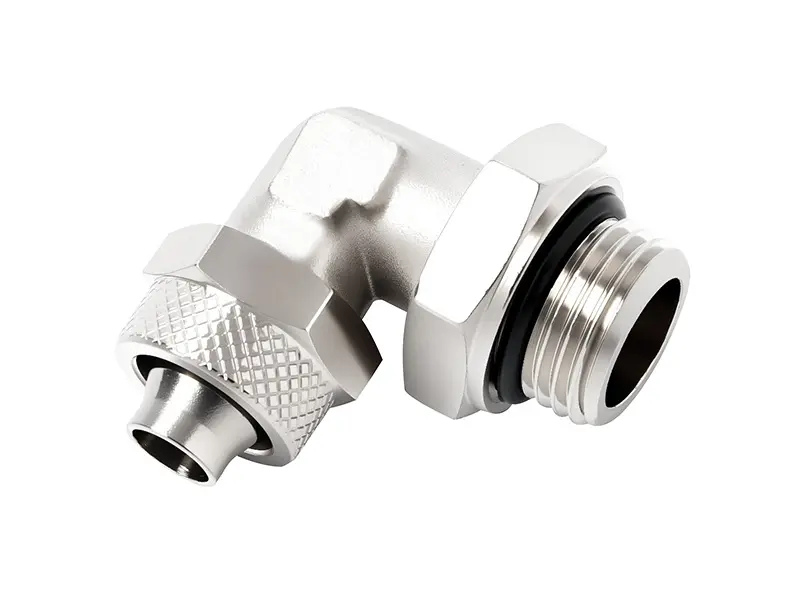

Upgrade your pneumatic systems with our 360° Rotatable BSPP thread Nickel-Plated Brass Pneumatic Quick-Connect Elbow, a premium fitting designed for flexibility, durability, and seamless performance. Whether you're working in industrial, automotive, or manufacturing environments, this elbow is engineered to meet the highest standards of quality and reliability.
360° Rotatable Design
The innovative rotating G and BSPP thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.
High-Quality Material
Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.
Quick-Connect Mechanism
The push-on connect design ensures quick, secure, and leak-free connections, saving time during installation and maintenance.
Wide Compatibility
It is a versatile choice for a variety of applications because it works with pneumatic systems and a variety of tubing sizes.
High-Pressure and Temperature Resistance
Created to operate dependably in a wide temperature range and under high pressure, allowing it to perform consistently in challenging conditions.
Applications
Perfect applications for this quick-connect elbow include:
Pneumatic Tools
Assembly Lines
Automation Systems
Industrial Machinery
Brake Systems
Fluid Transfer Applications
Air Compressors
Robotic Arms
Packaging Machines
Conveyor Systems
HVAC Systems
Air Conditioners
Why Choose Our Product?
Increased Flexibility
Even in troublesome locations, the 360° rotation function makes alignment and installation easier.
Durability
The construction of nickel-plated brass guarantees long-lasting performance and resistance to corrosion and wear.
Efficiency
The quick-connect design guarantees a safe, leak-proof connection and reduces downtime.
Versatility
It may be used in a variety of pneumatic applications, which makes it a dependable option for a number of sectors.
Technical Specifications
Material
Nickel-plated brass
Rotation
360-degree rotation
Connection Type
Pressure-Push
Pressure Rating
0 - 2.5 MPa
Temperature Range
-40 to 250°C (based on internal o-ring)
Frequently Asked Questions
Does this pneumatic fitting support rotation after installation?
Yes, it features a 360-degree rotatable G and BSPP thread design which allows easy alignment and installation in tight or complex spaces.
What is the working pressure rating of the quick-connect elbow?
This fitting operates dependably under high pressure with a pressure rating of 0 to 2.5 MPa.
What materials are used to construct the fitting?
The elbow is constructed from high-quality brass coated with a corrosion-resistant nickel plating to withstand harsh working environments.
What is the operating temperature range?
The operating temperature range is -40 to 250°C, which depends on the specifications of the internal O-ring.
Is the push-on connect mechanism secure?
Yes, the quick-connect mechanism features a secure push-on design that ensures easy, fast, and leak-free tubing connection and alignment.
What industries can use this quick-connect fitting?
It is widely compatible with pneumatic tools, automation systems, automotive systems (like brake systems and air compressors), manufacturing equipment, and HVAC systems.
