A practical and efficient fluid connection solution, 360° rotating threaded push-on elbow fittings are widely applied in automation, water treatment, pneumatic systems, chemical processes, and more. They are designed to enhance the reliability and safety of piping systems while simplifying installation.

Send Inquiry

Product Description

Product Introduction

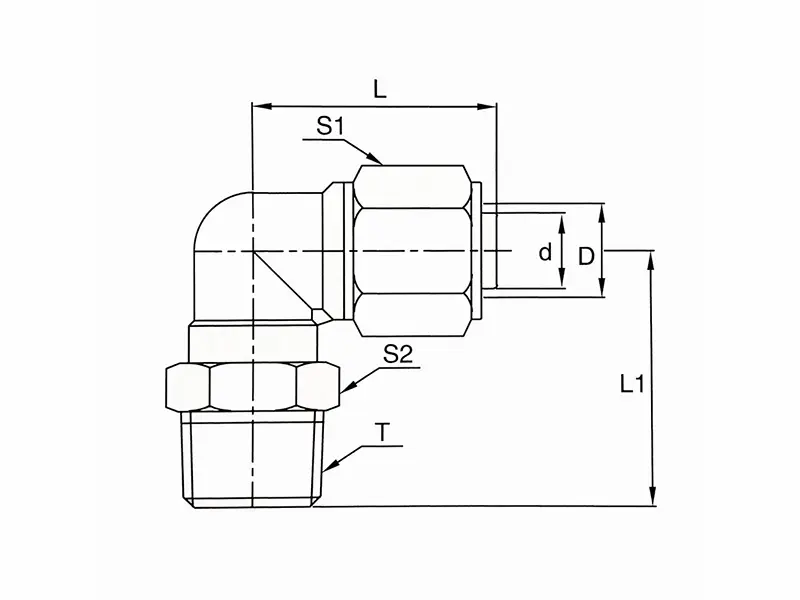

PL-Elbow male push on fittings dimensions

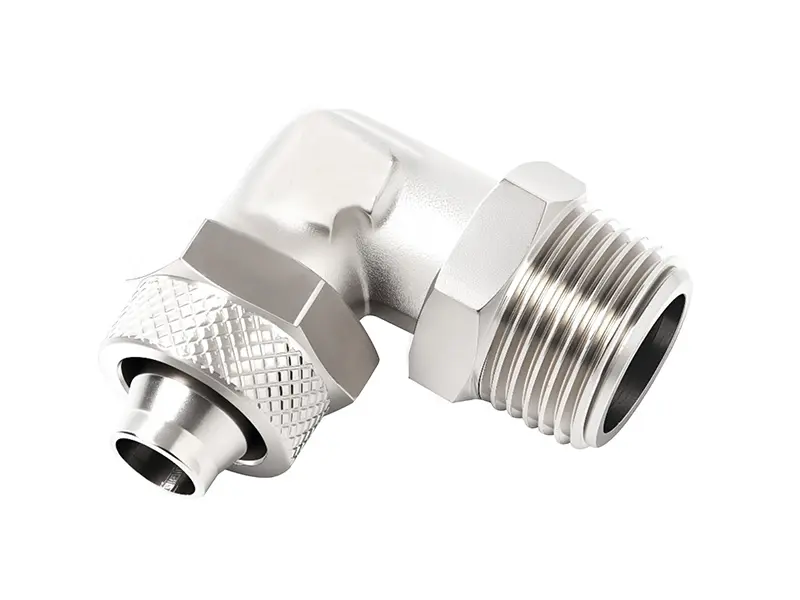

PL-Elbow male push on fittings structure

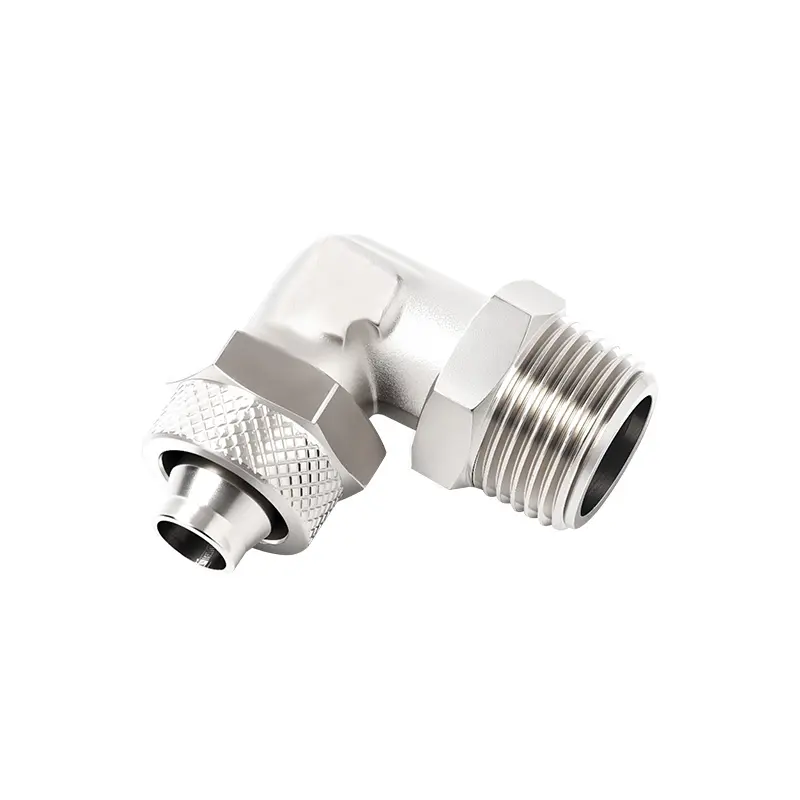

PL-Elbow male push on fittings (360° rotatable thread)
Model L L1 S1 S2 T H
NKPL4-M5 17 18 8 10 M5 4.5
NKPL6-M5 21 19 12 10 M5 4.5
NKPL6-01 21 22 12 12 R1/8 7.5
NKPL6-02 21 24 12 14 R1/4 9
NKPL6-03 21 26 12 17 R3/8 10.5
NKPL6-04 21 27 12 21 R1/2 12
NKPL8-01 25 22 13 12 R1/8 7.5
NKPL8-02 25 24 13 14 R1/4 9
NKPL8-03 25 26 13 17 R3/8 10.5
NKPL8-04 25 27 13 21 R1/2 12
NKPL10-01 25 24 15 12 R1/8 7.5
NKPL10-02 25 26 15 14 R1/4 9
NKPL10-03 25 27 15 17 R3/8 10.5
NKPL10-04 25 28 15 21 R1/2 12
NKPL12-01 26 25 17 12 R1/8 7.5
NKPL12-02 26 27 17 14 R1/4 9
NKPL12-03 26 28 17 17 R3/8 10.5
NKPL12-04 26 29 17 21 R1/2 12
NKPL16-02 31 29 22 14 R1/4 9
NKPL16-03 31 30 22 17 R3/8 10.5
NKPL16-04 31 31 22 21 R1/2 12
NKPL16-06 31 35 22 27 R3/4 15
NKPL6-M8*1 - - - - - -
NKPL8-M8*1 - - - - - -
NKPL6-M10*1 - - - - - -
NKPL8-M10*1 - - - - - -
NKPL8-M12*1.25 - - - - - -
NKPL10-M12*1.25 - - - - - -
NKPL12-M16*1.5 - - - - - -
NKPL16-M16*1.5 - - - - - -
The size is measured manually, there may be slight deviations, only for reference.

Main Features

Whether you work in manufacturing, automotive, or industrial settings, our 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow is a high-end fitting made to meet the highest standards of quality and dependability. It is ideal for pneumatic systems because it is flexible, durable, and performs seamlessly.
360° Rotatable Design
Easy alignment and installation in confined or complicated areas are made possible by the spinning thread. It reduces stress on linked components for effective airflow.
High-Quality Material
Constructed with robust brass and a corrosion-resistant nickel coating. It is built to endure harsh conditions like high pressure, chemicals, and moisture.
Quick-Connect Mechanism
The push-on connect design guarantees quick, safe, and leak-free connections, saving valuable installation and maintenance time.
Wide Compatibility
Highly compatible with pneumatic systems and various tubing sizes, serving as an adaptable solution for many industrial applications.
High-Pressure & Temp Resistance
Engineered to function reliably across broad temperature spans and high-pressure levels, ensuring stable operation.
Applications
✓
Industrial Machinery: Pneumatic tools, production lines, and automated systems.
✓
Automotive Systems: Air compressors, braking systems, and fluid transfer processes.
✓
Manufacturing Equipment: Conveyor systems, packaging devices, and robotic arms.
✓
General Pneumatic Systems: Air conditioning, HVAC systems, and more.
Why Choose Our Product?
✓
Superior Maneuverability: The 360° rotational capability simplifies installation and alignment, even in hard-to-access locations.
✓
Longevity: Crafted from nickel-plated brass, ensuring durable performance and resistance to wear and corrosion.
✓
Efficiency: The quick-connect design reduces downtime and ensures a secure, leak-free connection.
✓
Versatility: It is appropriate for a wide range of pneumatic applications and is a reliable option across various industries.
Technical Specifications
Material: Nickel-Plated Brass
Rotation: 360° rotating thread
Connection Type: Push-on
Pressure Rating: 0 - 2.5 Mpa
Temperature Range: -40 - 250°C (dependent on the internal O-ring)

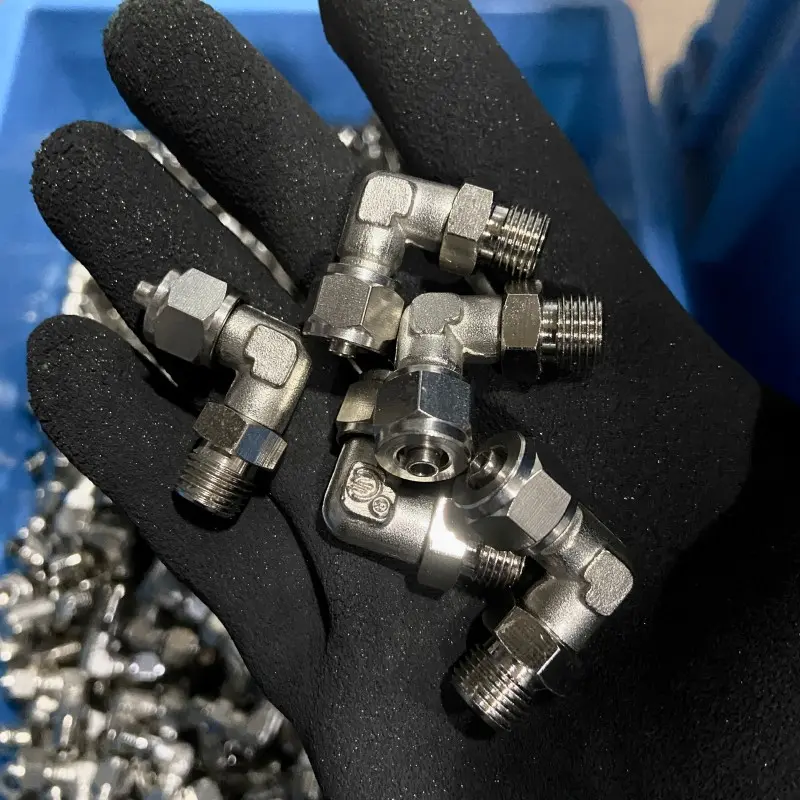

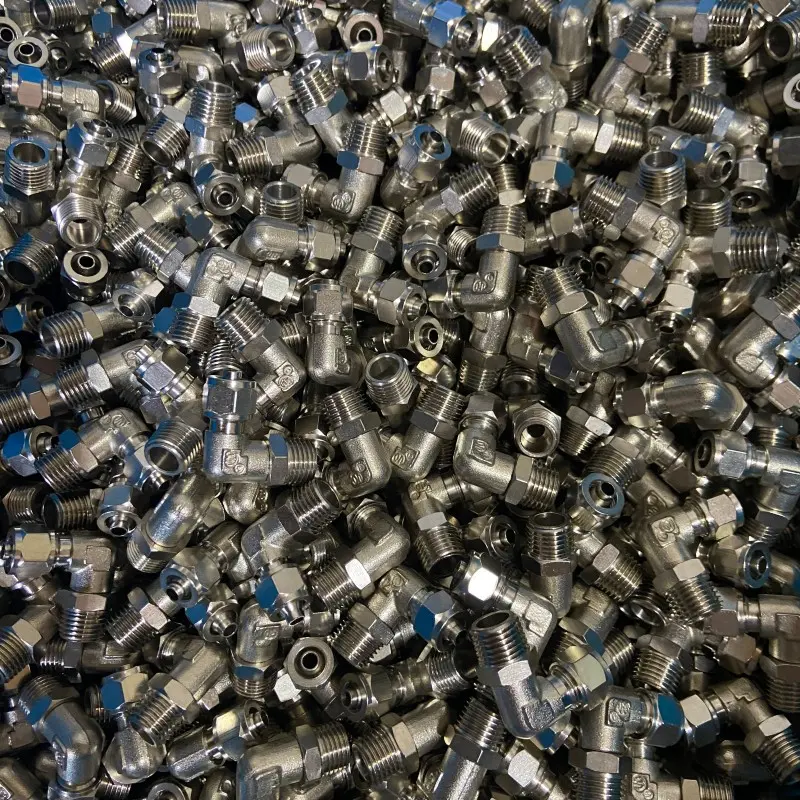

Pneumatic fitting view 1
Pneumatic fitting view 2

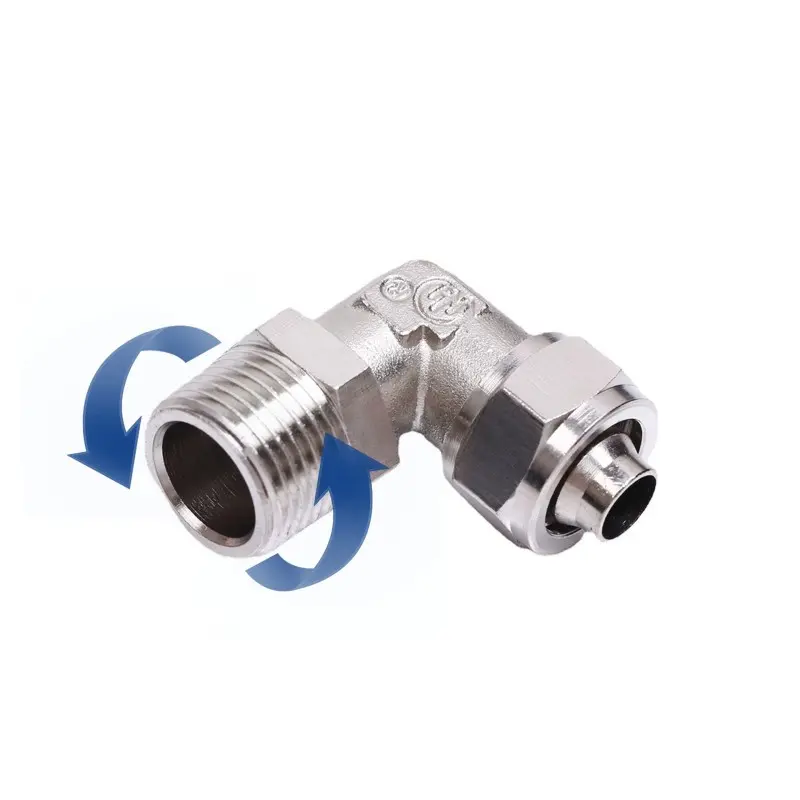

Pneumatic fitting view 3

Installation Video

Frequently Asked Questions

What materials are used to manufacture this quick-connect elbow?
The fitting is constructed from robust brass and features a specialized nickel coating. This combination ensures high durability and premium resistance against corrosion, moisture, and chemical exposure.
How does the 360° rotatable design benefit my installation?
The 360° rotating thread allows for simple alignment in tight, confined, or complex spaces. By offering rotational flexibility after installation, it reduces mechanical stress on the tubing and connected parts.
What are the pressure and temperature limits of this fitting?
This pneumatic elbow operates reliably within a pressure rating of 0 to 2.5 Mpa and withstands temperatures ranging from -40°C to 250°C, depending on the specifications of the internal O-ring used.
Is the quick-connect connection leak-free and secure?
Yes, the push-on design provides a secure and reliable lock that prevents leaks, minimizing system downtime and facilitating fast and simple connection and maintenance.
What applications are ideal for this pneumatic fitting?
It is highly suitable for automated industrial machinery, automotive systems (such as air compressors and braking systems), conveyor and manufacturing systems, and general HVAC or air conditioning networks.
