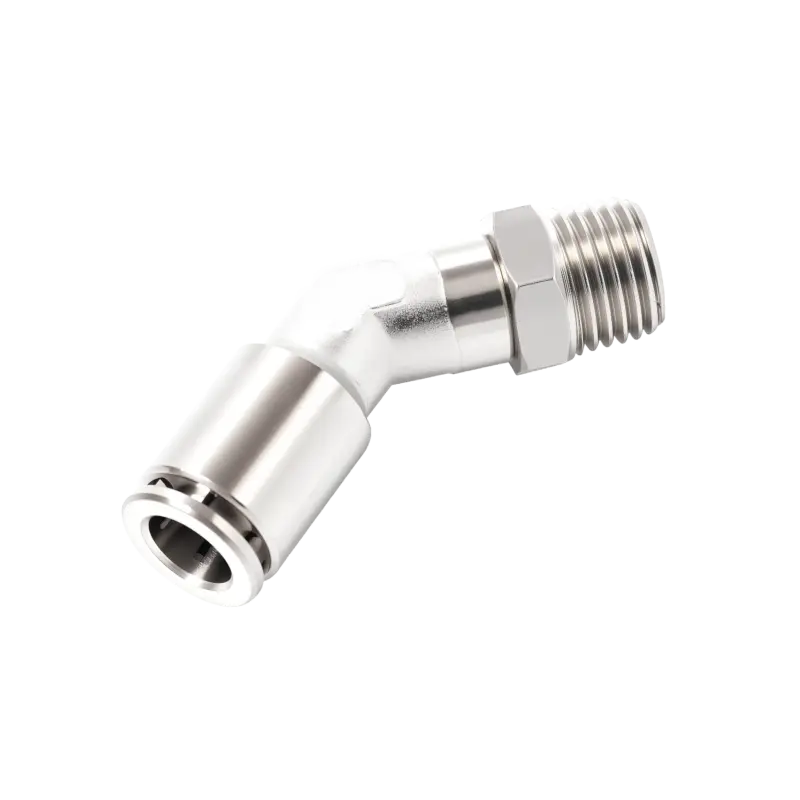

ODM PL45°-45° Elbow push in fittings(360° rotatable thread) Factories, Companies
45° Elbow push in fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

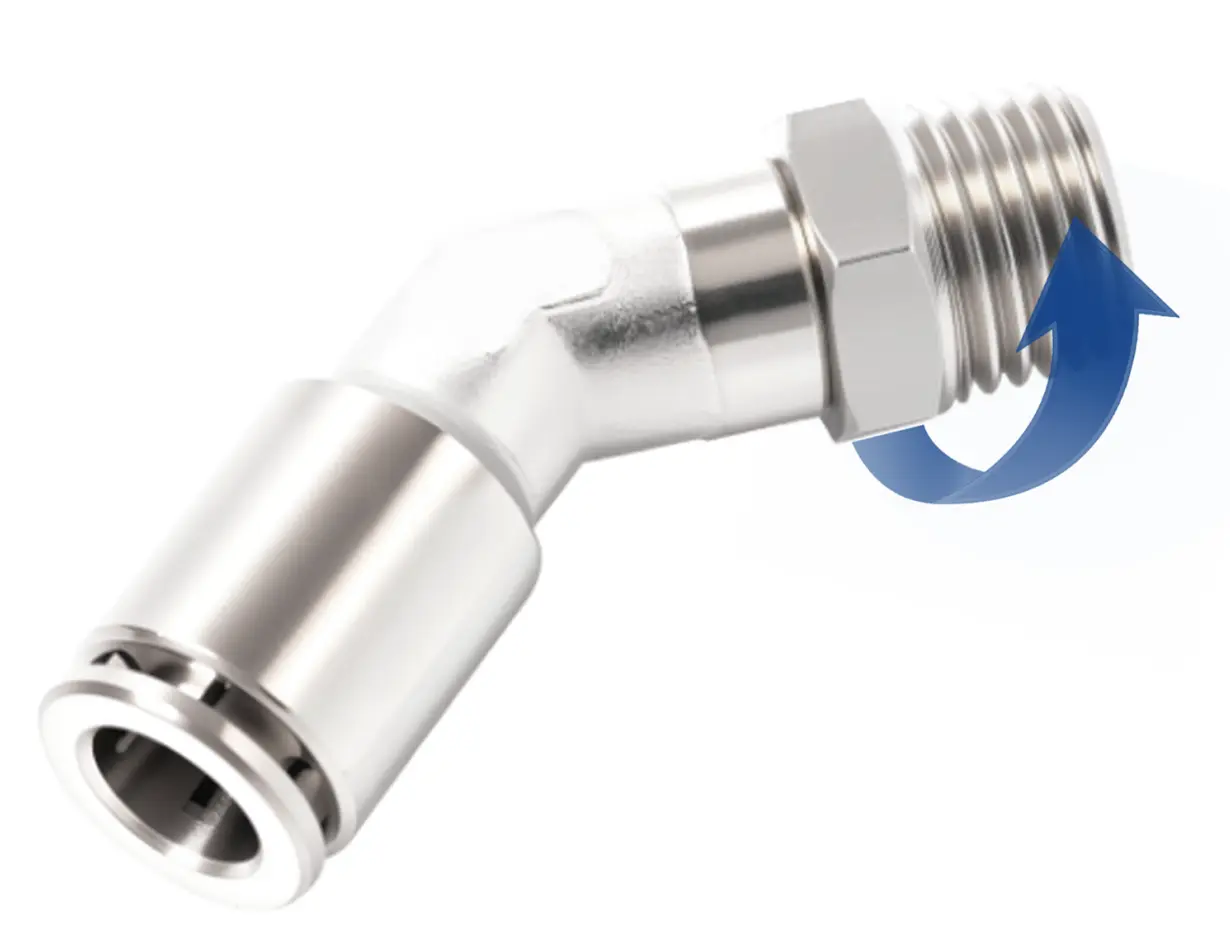

Upgrade your pneumatic systems with our 360° Rotatable Nickel-Plated Brass Pneumatic Quick-Connect Elbow, a premium fitting designed for flexibility, durability, and seamless performance. Whether you're working in industrial, automotive, or manufacturing environments, this elbow is engineered to meet the highest standards of quality and reliability.
Key Features
360° Swivelling Design
The innovative rotating thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.
High-Quality Material
Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.
Quick-Connect Mechanism
The push-to-connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.
Wide Compatibility
Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.
High-Pressure & Temp Resistance
Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.
Applications
Industrial Machinery
Pneumatic tools, assembly lines, and automation systems.
Automotive Systems
Air compressors, brake systems, and fluid transfer applications.
Manufacturing Equipment
Conveyor systems, packaging machines, and robotic arms.
General Pneumatic Systems
Air conditioning, HVAC systems, and more.
Why Choose Our Product?
Enhanced Flexibility
The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.
Durability
Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.
Efficiency
The quick-connect design minimizes downtime and ensures a secure, leak-free connection.
Versatility
Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.
Technical Specifications
Material
Brass with Nickel Plating
Rotation
360° Rotatable Thread
Connection Type
Push in
Pressure Rating
0-2.5Mpa
Temperature Range
-40-250℃（according to the inside o-ring）
Frequently Asked Questions
What materials are used to manufacture this quick-connect elbow?
The pneumatic elbow is constructed from high-quality brass coated with a corrosion-resistant nickel plating. This ensures long-term performance even in damp or chemical-exposed environments.
What are the benefits of the 360-degree rotatable design?
The 360° swiveling thread allows the fitting to rotate freely. This simplifies installation in confined spaces, aids in precise alignment, and prevents tubing twist or strain on connection points.
What is the pressure rating of this pneumatic elbow?
This quick-connect elbow is rated to perform safely and efficiently under operating pressures ranging from 0 to 2.5Mpa.
What temperature range can this fitting withstand?
The product can function within a wide temperature range of -40 to 250℃. The exact temperature limit depends on the material of the internal O-ring seal being used.
Where is this pneumatic quick-connect elbow typically applied?
It is ideal for industrial machinery (pneumatic tools, automation lines), automotive systems (air compressors, brake systems), manufacturing equipment (robotic arms, packaging machines), and general HVAC or air conditioning applications.
