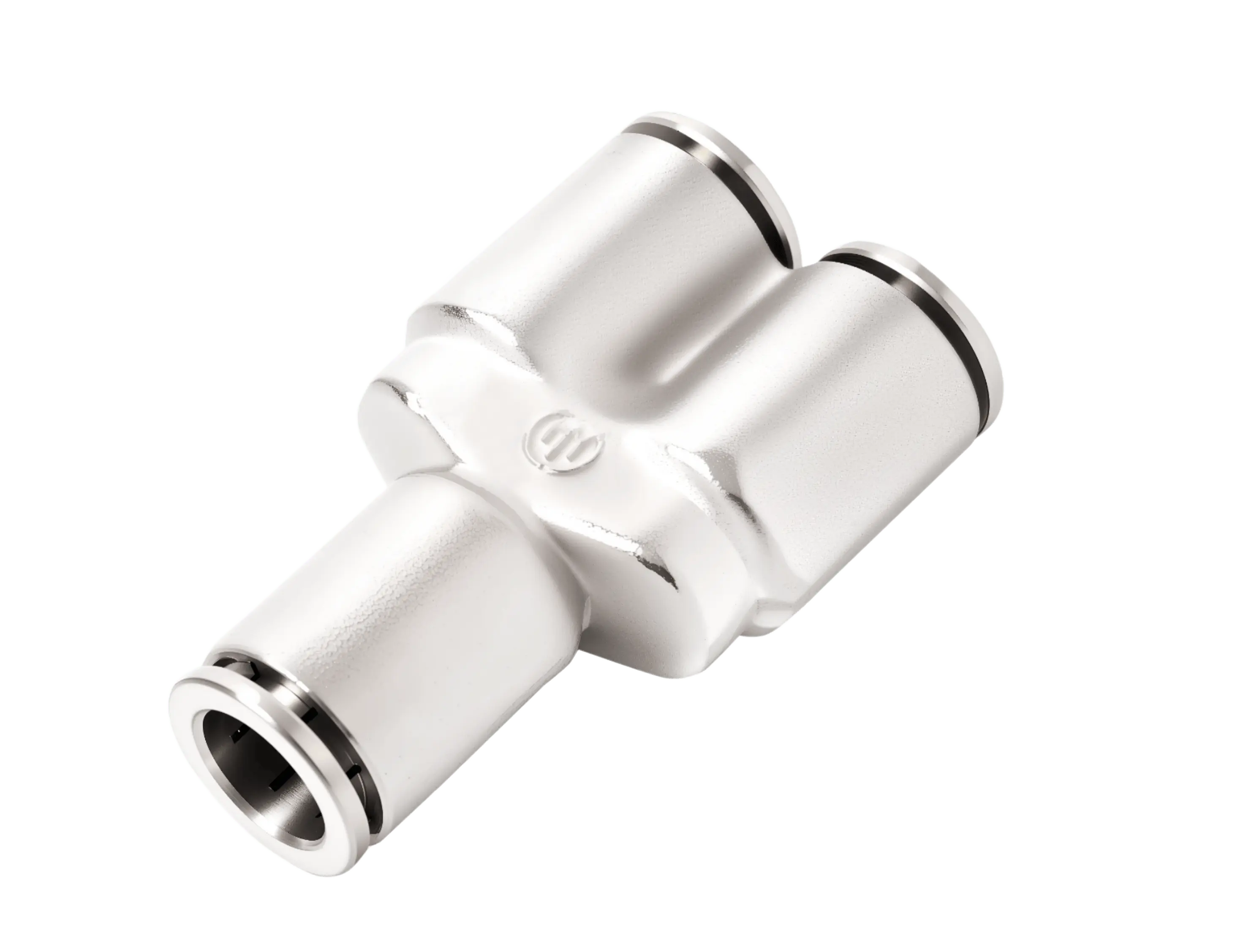

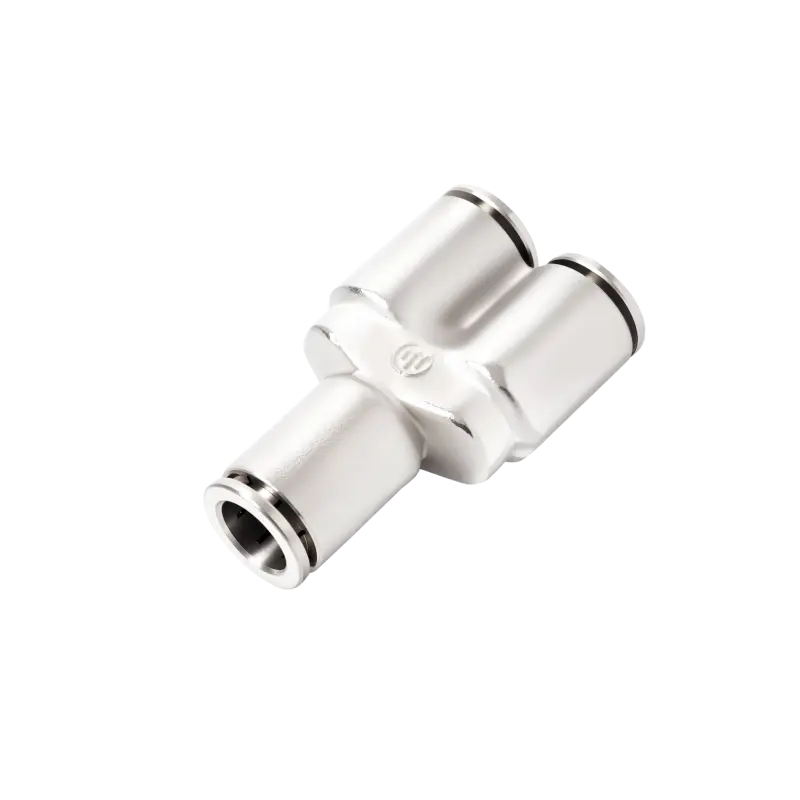

ODM PY-Y type push in fittings Suppliers, Manufacturer

Y type push in fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

Send Inquiry

Product Description

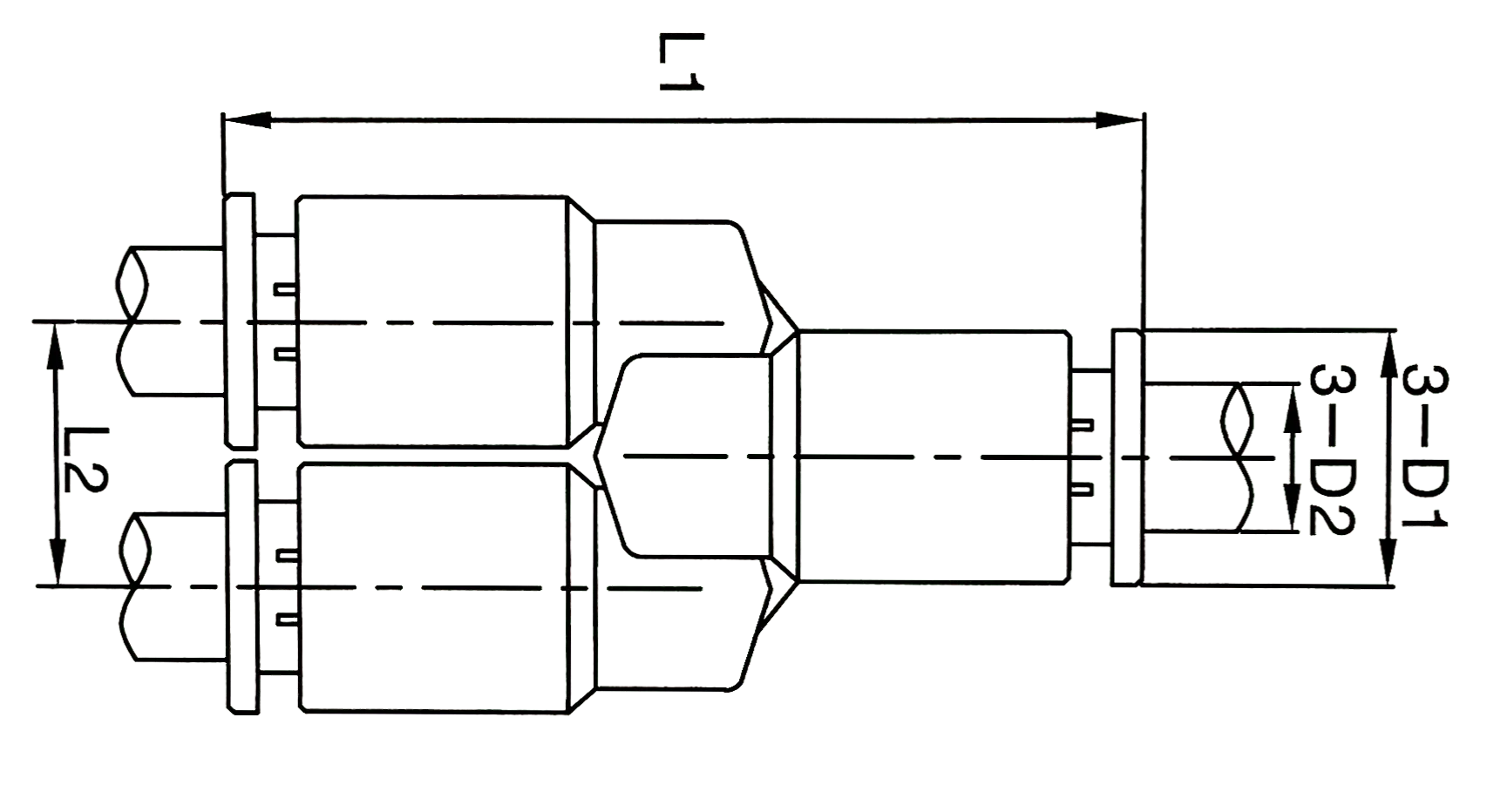

Model	L1	D1	D2
NPY4	32	9	4
NPY6	48	12	6
NPY8	50	14	8
NPY10	51	16	10
NPY12	58	18	12
* The size is measured manually, there may be slight deviations, only for reference.

Main Features

The brass nickel-plated Y quick-connect pneumatic coupling is a component designed for rapid connection and disconnection of pneumatic pipelines. Its core features include the use of brass nickel-plated material and a quick-connect function, significantly enhancing work efficiency and safety.

Quick Installation

Adopts a one-button plug-in design, which can be quickly connected and disconnected without tools, greatly saving installation and maintenance time.

High Sealing

Equipped with high-quality sealing rings to ensure that the connector can still maintain good sealing performance under high pressure and high temperature environment to prevent leakage.

Durable Material

Made of H59-1 brass material, it is corrosion-resistant and wear-resistant, suitable for a variety of environments. Nickel Plating further enhances corrosion resistance, surface hardness, and extends lifespan.

Various Specifications

Complete specifications to meet the assembly requirements of different sizes of threads and pipes, enhancing overall system compatibility.

Wide Use Media

Suitable for the transmission of various media such as water, oil, gas, etc.

Applications

Widely used in automation equipment, pneumatic tools, medical devices, food and beverage industry, electronics and electrical appliances, and so on.

The brass nickel-plated elbow quick-connect pneumatic fitting is a versatile and reliable component that offers numerous advantages, including quick-connect functionality, reliable sealing, and strong corrosion resistance. Its robust construction and ease of installation make it an ideal choice for a wide range of applications across various industries. By selecting the appropriate coupling for your specific needs, you can enhance the efficiency, safety, and longevity of your pneumatic system.

Installation Video

Frequently Asked Questions

What are the primary materials used in these pneumatic fittings?

They are made of H59-1 brass material with a nickel-plated finish. This combination ensures high corrosion resistance, wear resistance, increased surface hardness, and an extended operational lifespan.

Is any special tool required for installation?

No. These fittings feature a user-friendly one-button plug-in design, allowing you to connect and disconnect pneumatic pipelines quickly and easily without needing any tools.

Which media can be transmitted using these couplings?

The fittings are versatile and suitable for transmitting multiple media types, including water, oil, and gas.

How do the fittings perform in high-pressure environments?

They are equipped with high-quality sealing rings that ensure reliable sealing performance and prevent leakage even under high-pressure and high-temperature environments.

What industries commonly use these quick-connect fittings?

They are widely applied in industrial automation equipment, pneumatic tools, medical devices, the food and beverage industry, electronics, and electrical appliances.
