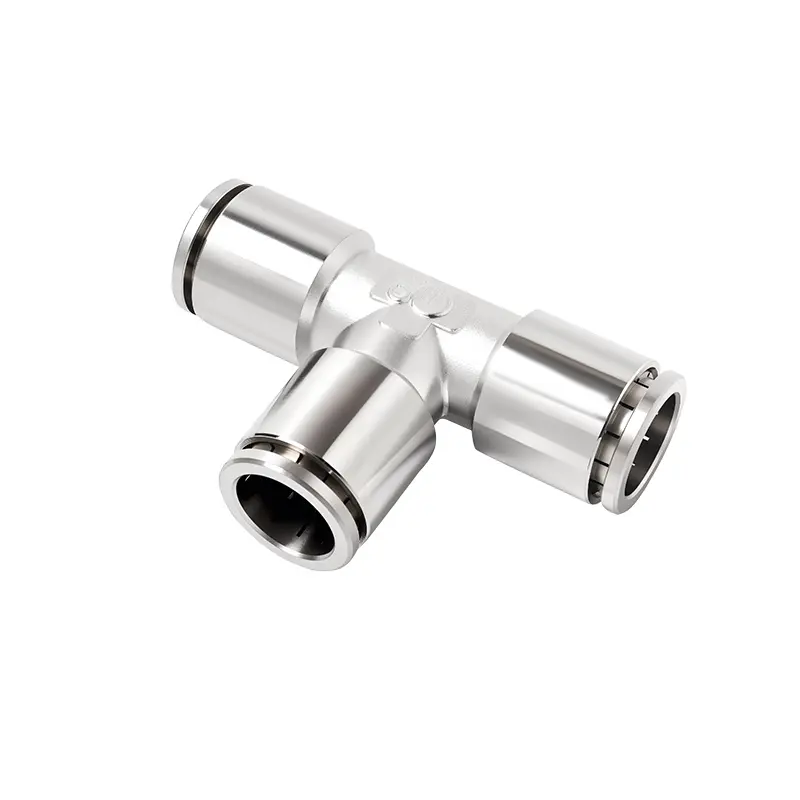

OEM PEG-T type reducer push in fittings Suppliers, Companies

T type reducer push in fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

Send Inquiry

Product Description

Product Introduction

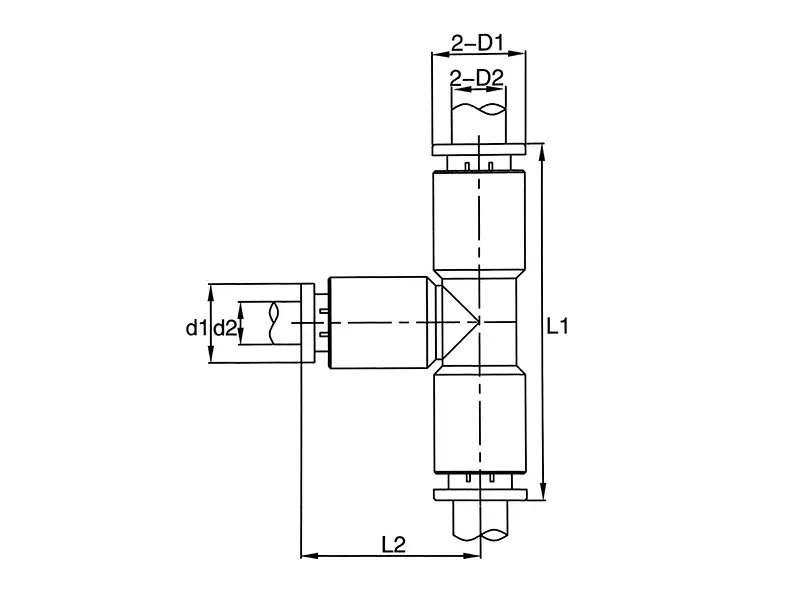

PEG-T type reducer push in fittings	Model	L1	L2	D1	D2	d1	d2
	NPEG6-4*2	47	22	9	4	12	6
	NPEG8-6*2	52	25	12	6	14	8
	NPEG10-6*2	59	28	12	6	16	10
	NPEG10-8*2	59	30	14	8	16	10
	NPEG12-10*2	60	30	16	10	18	12
	NPEG12-8*2	60	30	14	8	18	12
	NPEG16-12*2	68	34	18	12	23	16
	The size is measured manually, there may be slight deviations, only for reference.

Main Features

Pneumatic pipelines can be quickly connected and disconnected with the help of the brass nickel-plated T quick-connect pneumatic coupler. Its key characteristics, which greatly improve labor productivity and safety, include the use of brass nickel-plated material and a quick-connect feature.

1. Quick installation

Uses a one-button plug-in design that can be quickly inserted and removed without the need for tools, significantly cutting down on the amount of time needed for installation and maintenance.

2. High sealing

Fitted with premium sealing rings to guarantee that the connector can keep working efficiently in high-temperature and high-pressure sealing situations to stop leaks.

3. Durable material

Made of H59-1 brass, which is corrosion and wear resistant and suitable for a variety of environments. Nickel plating improves corrosion resistance, increases surface hardness, enhances wear resistance, and prolongs the coupling's lifespan while raising the product's overall quality.

4. Various specifications

Thorough specifications to meet the requirements of assembly threads and pipes of different diameters. This flexibility enhances overall system compatibility by ensuring that the right coupling may be selected.

5. Wide use media

Suitable for the transmission of various media such as water, oil, gas, etc.

6. Applications

Automation equipment, pneumatic tools, medical devices, food and beverage industries, electronics and electrical appliances, and more all make extensive use of this elbow quick-connect pneumatic connection.

A dependable and adaptable part, the brass nickel-plated elbow quick-connect pneumatic fitting has many benefits, such as high corrosion resistance, dependable sealing, and quick-connect functionality. Because of its sturdy design and simplicity of installation, it is a great option for a variety of applications in different sectors. You may improve the longevity, safety, and efficiency of your pneumatic system by choosing the right coupler for your particular requirements.

Installation Video

Frequently Asked Questions

What material is the PEG-T type reducer fitting made of?

It is made of premium H59-1 brass with a nickel-plated surface treatment. This construction enhances corrosion resistance, wear resistance, and overall durability.

Are any special tools required to install these pneumatic fittings?

No, the fittings feature a one-button plug-in design that allows for quick connection and disconnection without the need for additional tools.

What media are compatible with these couplers?

These couplers are highly versatile and suitable for transmitting multiple media, including water, oil, and gas.

How does the nickel plating benefit the product?

Nickel plating increases surface hardness, protects the fittings from harsh and corrosive environments, prolongs the overall lifespan of the coupling, and improves the visual appearance.

In which industries are these pneumatic couplers commonly used?

They are extensively applied in industrial automation equipment, pneumatic tools, medical devices, the food and beverage industries, electronics, and electrical appliances.
