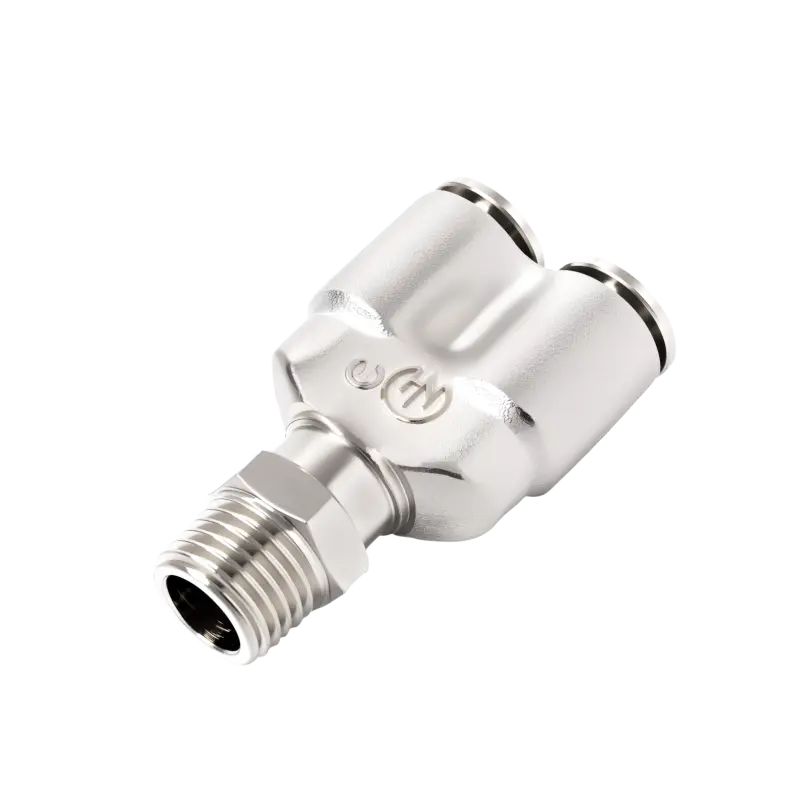

Y type middle thread push in fittings is an efficient and convenient fluid connection device, widely used in automation, pneumatic pipeline systems, water treatment, chemical industry and other fields. It is designed to simplify the installation process and improve the reliability and safety of the pipeline system.

Send Inquiry

Product Description

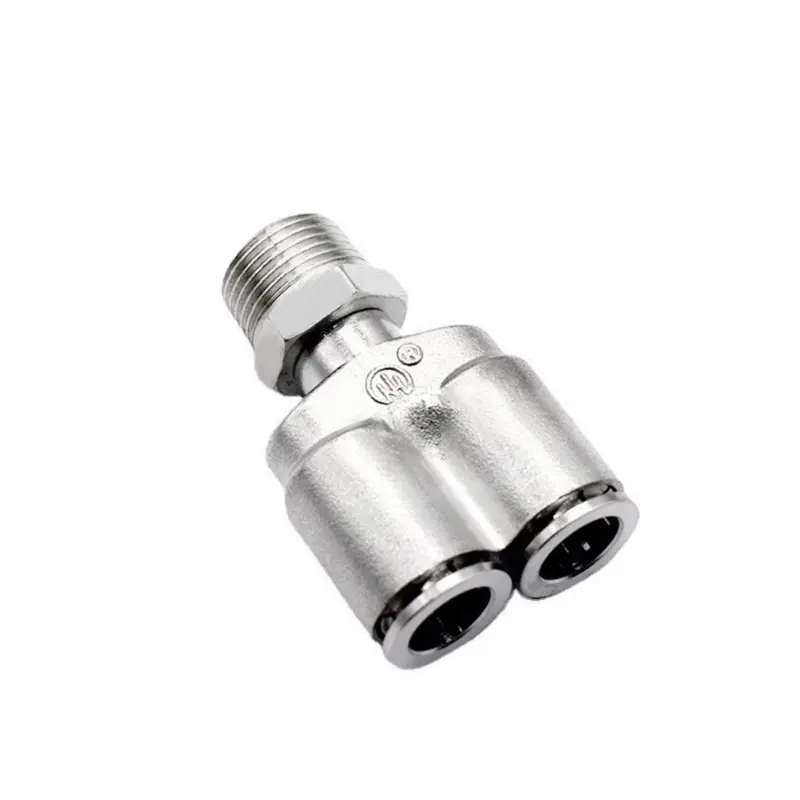

PX-Y middle thread push in fitting detail 1

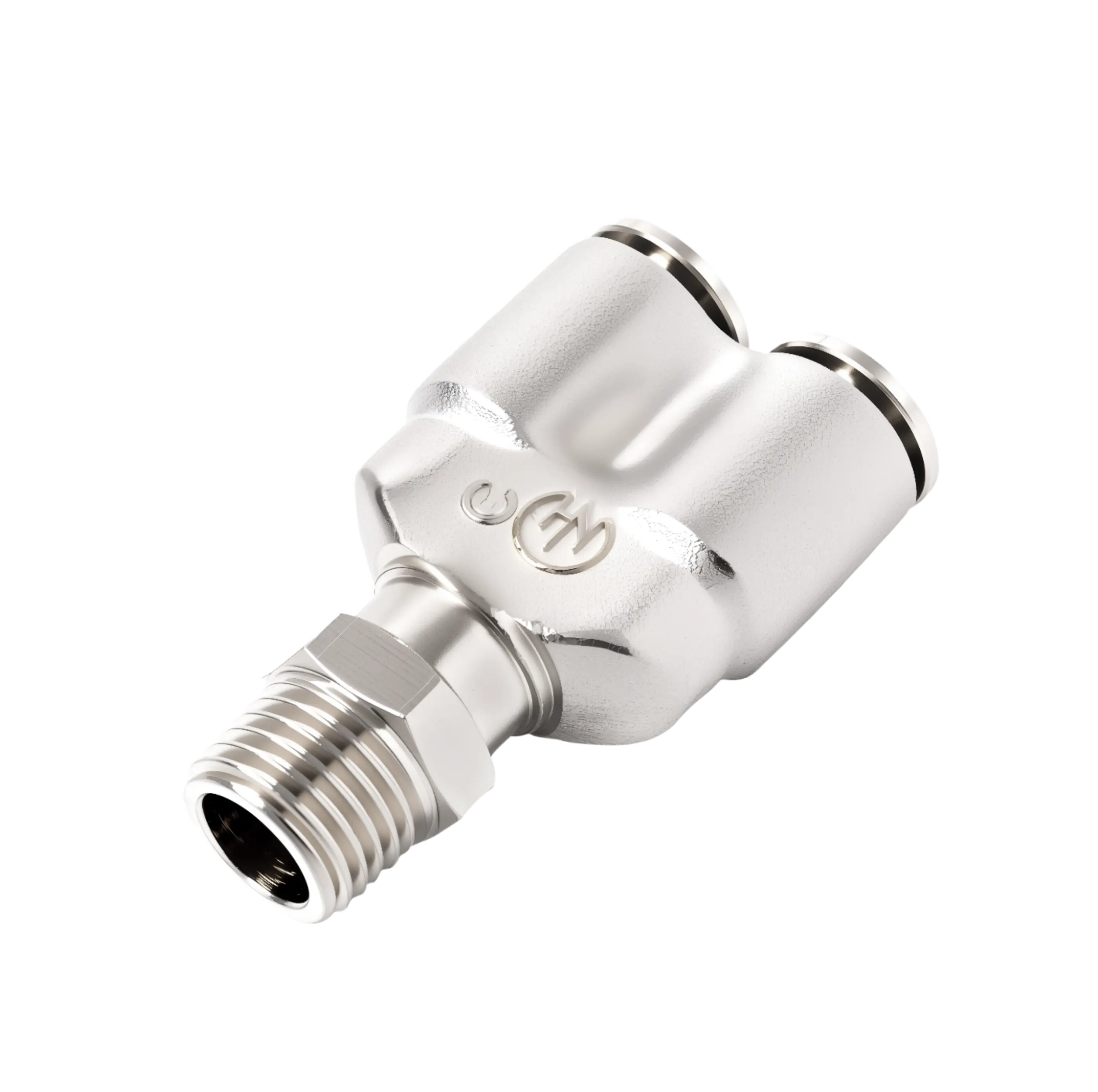

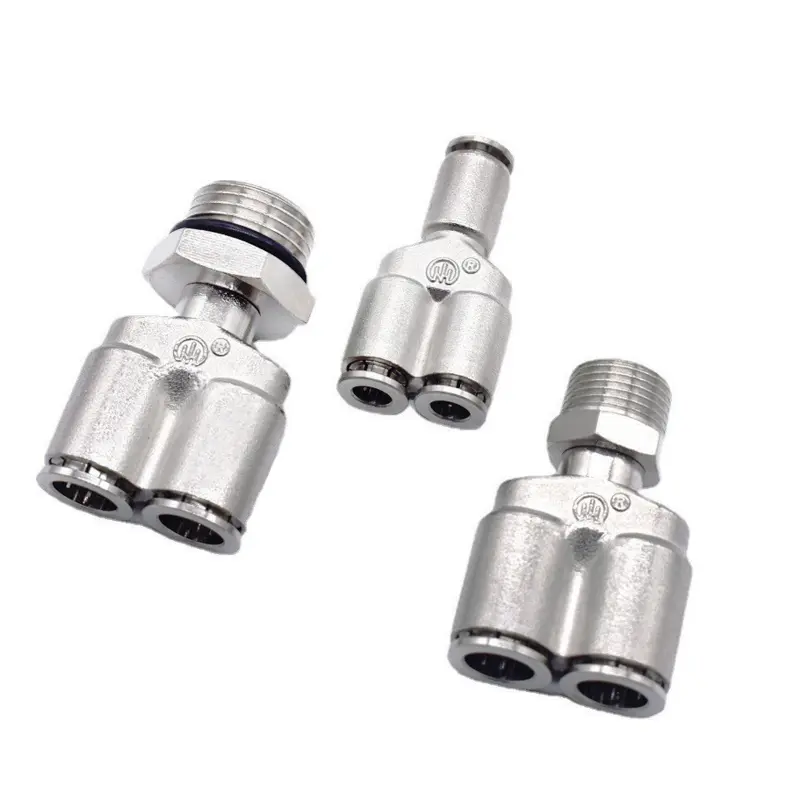

PX-Y middle thread push in fitting detail 2

Model	L1	H	S	T	D1	D2
NPX4-M5	31	4.5	10	M5	9	4
NPX6-01	35	7	12	R1/8	12	6
NPX6-02	37	9	14	R1/4	12	6
NPX6-03	39	10	19	R3/8	12	6
NPX6-04	41	11.5	21	R1/2	12	6
NPX8-01	50	7	12	R1/8	14	8
NPX8-02	51	9	14	R1/4	14	8
NPX8-03	52	10	19	R3/8	14	8
NPX8-04	54	11.5	21	R1/2	14	8
NPX10-01	53	7	12	R1/8	16	10
NPX10-02	55	9	14	R1/4	16	10
NPX10-03	57	10	19	R3/8	16	10
NPX10-04	60	11.5	21	R1/2	16	10
NPX12-01	56	7	12	R1/8	18	12
NPX12-02	58	9	14	R1/4	18	12
NPX12-03	61	10	19	R3/8	18	12
NPX12-04	63	11.5	21	R1/2	18	12

The size is measured manually, there may be slight deviations, only for reference.

Main Features

The brass nickel-plated T type middle thread quick-connect pneumatic coupling is a component designed for rapid connection and disconnection of pneumatic pipelines. Its core features include the use of brass nickel-plated material and a quick-connect function, significantly enhancing work efficiency and safety.

360° Swirling Design

The innovative rotating thread allows for easy alignment and installation in tight or complex spaces. This flexibility reduces stress on connected components and ensures optimal positioning for efficient airflow.

High-Quality Material

Made from durable brass with a corrosion-resistant nickel plating, this elbow is built to withstand harsh environments, including exposure to moisture, chemicals, and high-pressure conditions.

Quick-Connect Mechanism

The push-to-connect design ensures fast, secure, and leak-free connections, saving time during installation and maintenance.

Wide Compatibility

Compatible with a variety of tubing sizes and pneumatic systems, making it a versatile choice for multiple applications.

Pressure & Temperature Resistance

Engineered to perform reliably under high-pressure conditions and within a wide temperature range, ensuring consistent operation in demanding settings.

Applications

This quick-connect elbow is ideal for use in:

Industrial Machinery: Pneumatic tools, assembly lines, and automation systems.
Automotive Systems: Air compressors, brake systems, and fluid transfer applications.
Manufacturing Equipment: Conveyor systems, packaging machines, and robotic arms.
General Pneumatic Systems: Air conditioning, HVAC systems, and more.

Why Choose Our Product?

Enhanced Flexibility

The 360° rotation feature simplifies installation and alignment, even in hard-to-reach areas.

Durability

Nickel-plated brass construction ensures long-lasting performance and resistance to wear and corrosion.

Efficiency

The quick-connect design minimizes downtime and ensures a secure, leak-free connection.

Versatility

Suitable for a wide range of pneumatic applications, making it a reliable choice for various industries.

Technical Specifications

Material: Brass with Nickel Plating

Rotation: 360° Rotatable

Connection Type: Push in

Pressure Rating: 0-2.5Mpa

Temperature Range: -40-250℃ (according to the inside o-ring)

Installation Video

Frequently Asked Questions

What materials are these pneumatic fittings constructed from?

These fittings are manufactured using high-quality brass coated with a corrosion-resistant nickel plating, offering excellent durability and reliability in moisture-heavy or harsh industrial environments.

How does the 360° rotatable design benefit my system?

The 360° swirling feature enables the fitting to rotate freely. This allows for precise alignment during installation in tight or complex layouts, preventing hose twisting and reducing physical stress on the components.

What are the pressure and temperature ratings for this model?

The fitting handles a working pressure range of 0 to 2.5 Mpa. It is rated to withstand temperature fluctuations between -40℃ and 250℃, depending on the specifications of the internal O-ring seal.

Is the push-in connection secure and leak-proof?

Yes, the push-to-connect design is engineered to lock tubing securely instantly, providing a consistent, airtight, and leak-free seal without the need for manual tooling.

What tubing and systems are compatible with these fittings?

They are widely compatible with standard pneumatic tubing systems and find application in industrial machinery, automotive compressor/braking lines, manufacturing conveyor lines, and HVAC units.
